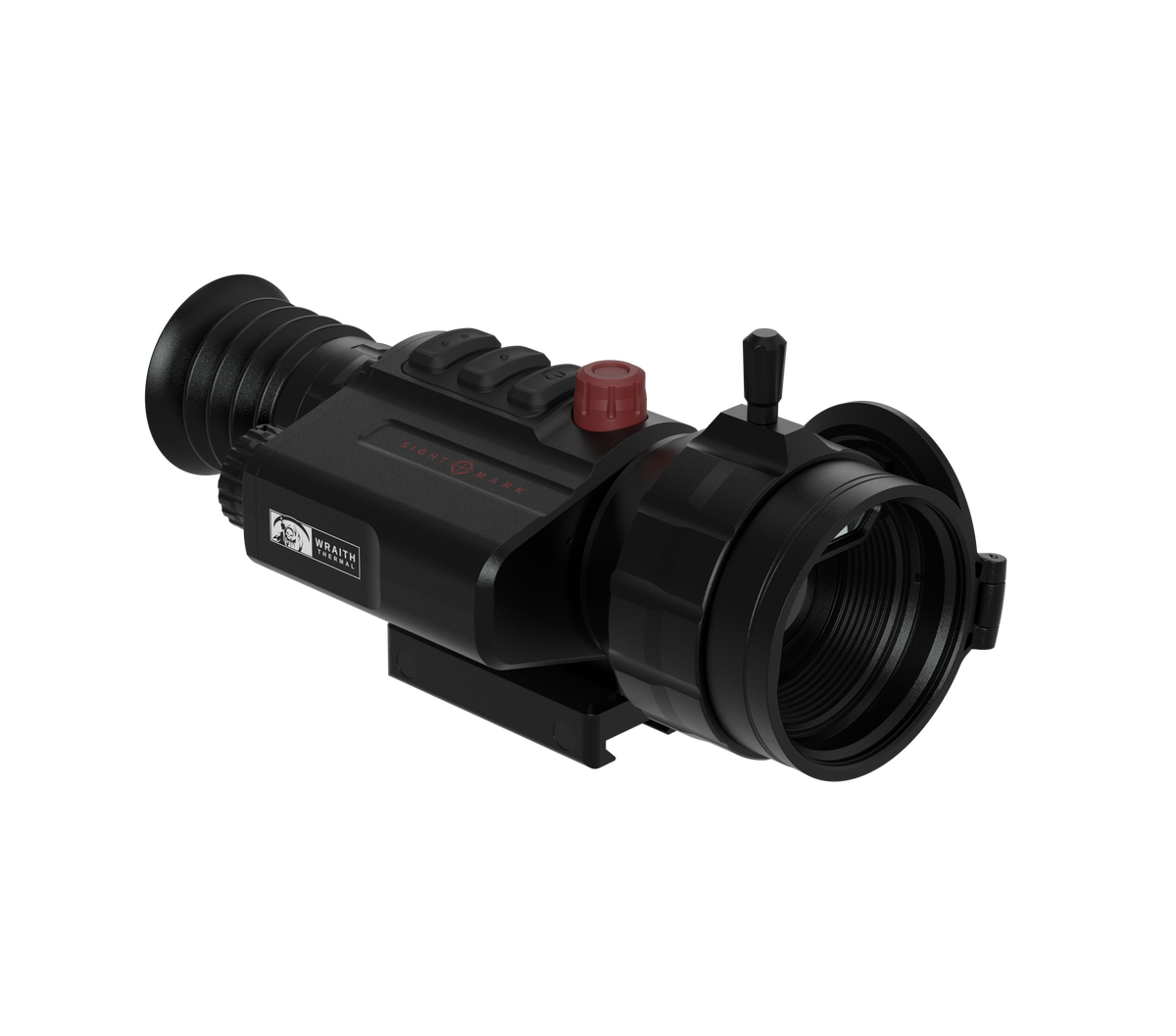

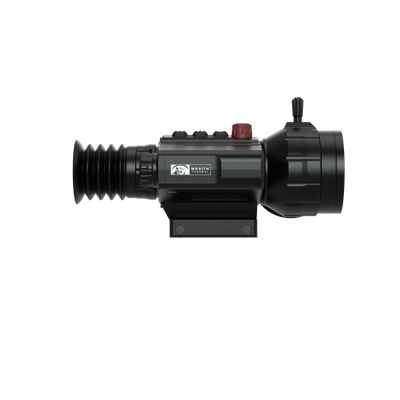

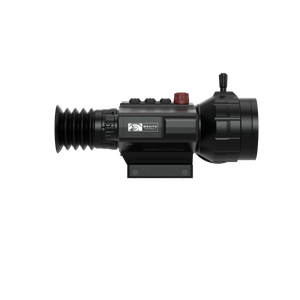

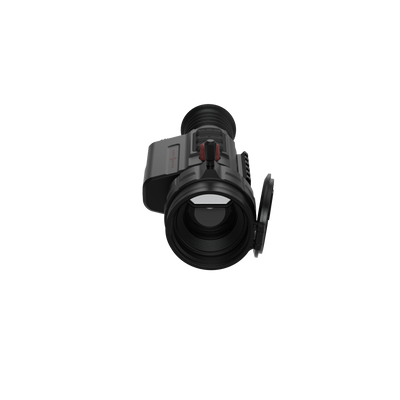

Wraith 2 LRF 640
Wraith 2 LRF 640 640×512 · 2-16x40

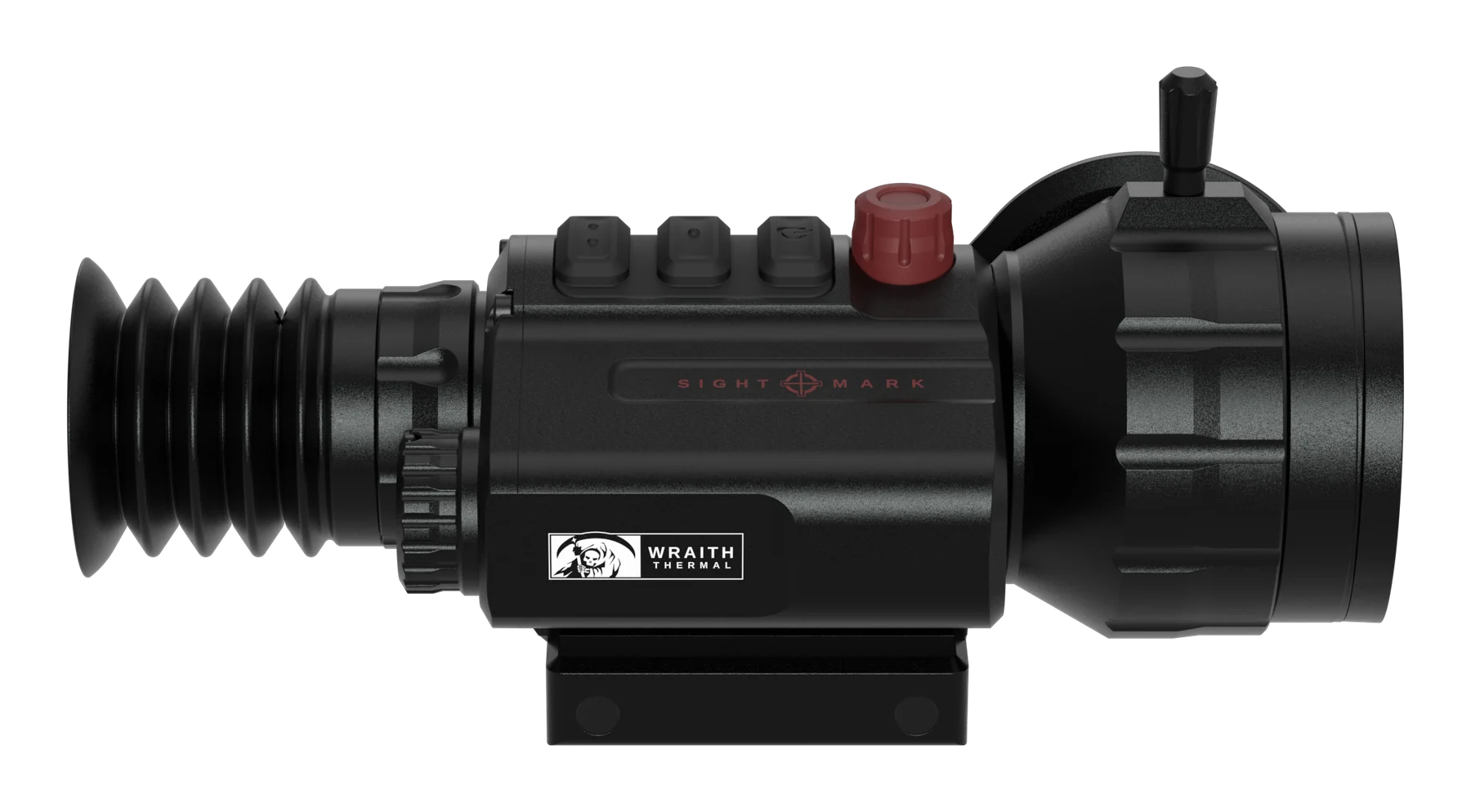

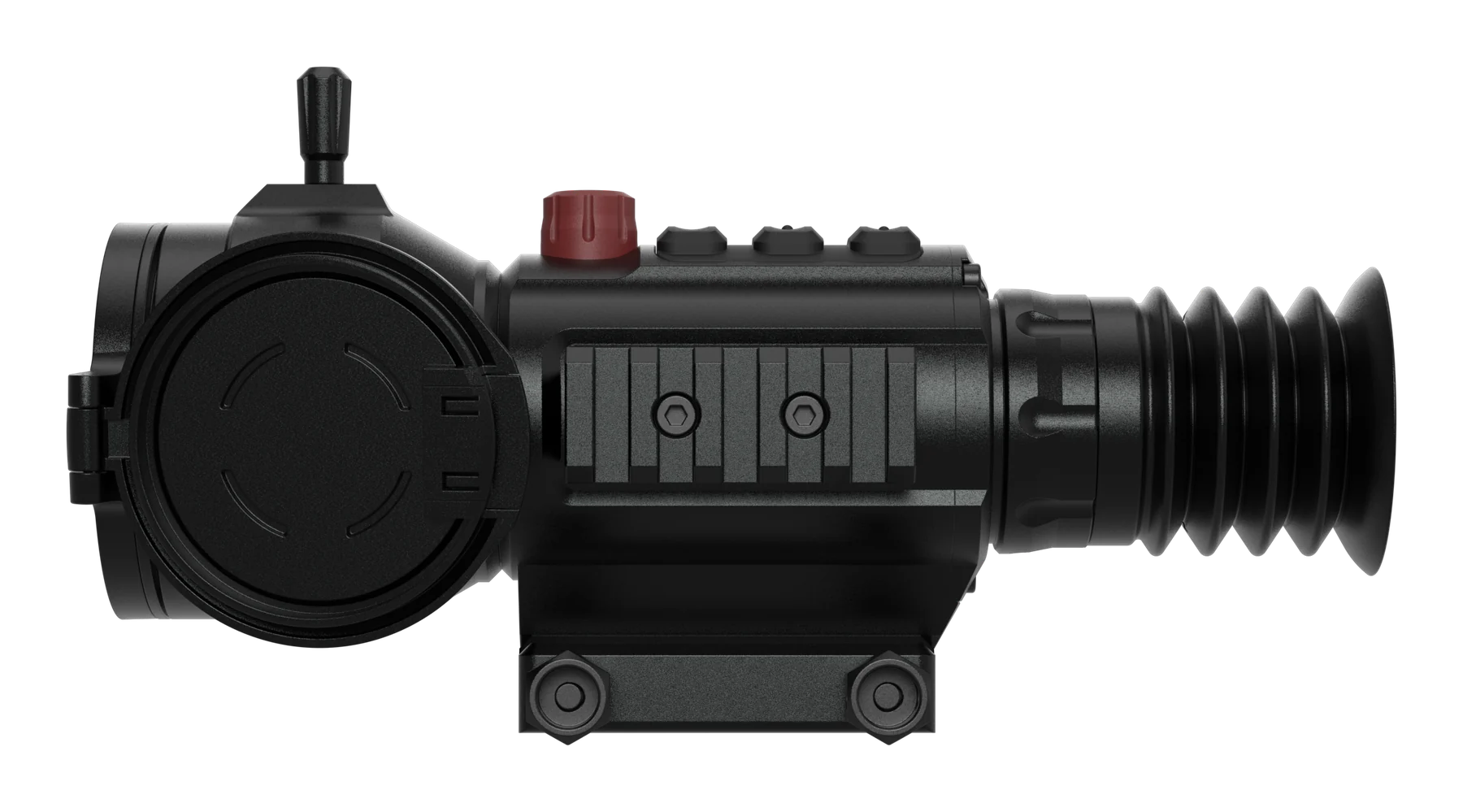

Every Control Where You Need It
Select a red marker to learn what each part does
Eyepiece
Battery Compartment
Power + Dot Buttons
Red Control Dial
OLED Eyepiece
An OLED screen inside the eyepiece shows the thermal image and useful information such as battery level and measured distance. Once trajectory calculation is set up, it can also show a calculated aiming point.
Tool-Free Battery Compartment
The scope uses a removable, rechargeable 18650 lithium-ion battery. Open the compartment by hand to replace it without tools. Each battery provides up to 4.5 hours of viewing time. Actual runtime varies with use. Two batteries and a separate charger are included. The USB-C port can power the scope but cannot charge a battery inside it.
Power + Dot Buttons
Double-tap the single-dot button to measure target distance. Hold the double-dot button to switch between photo and video modes; press it once to take a photo or start or stop recording. Press the Power button to open the menu.
Red Control Dial
Turn the red dial to zoom in or out, up to eight times the starting magnification. Press it to change how heat appears on screen using different color palettes. Hold it for quick image settings, or use it to navigate menus.

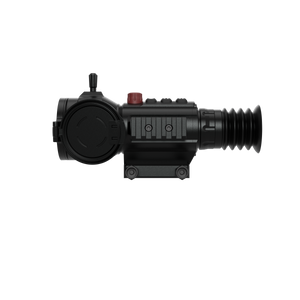

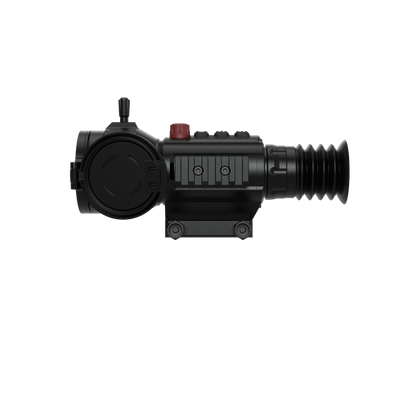

Accessory Rail
Picatinny Mount
Rubber Eyecup
Removable Picatinny Rail
The side rail lets you attach compatible accessories, such as a laser or an external battery pack. Connect a power pack to the USB-C port to run the scope for longer without replacing its internal battery.
Integrated Picatinny Mount
The built-in mount attaches to a Picatinny rail, the slotted mounting rail found on many rifles. Position the scope so your eye is about 2 inches from the eyepiece, then tighten the mounting screws to 35–50 inch-pounds. Its compact body suits AR-style rifles and other compatible firearms.
Rubber Eyecup
The rubber eyecup blocks light from the display from leaking around your eye, helping keep your face less visible in the dark.

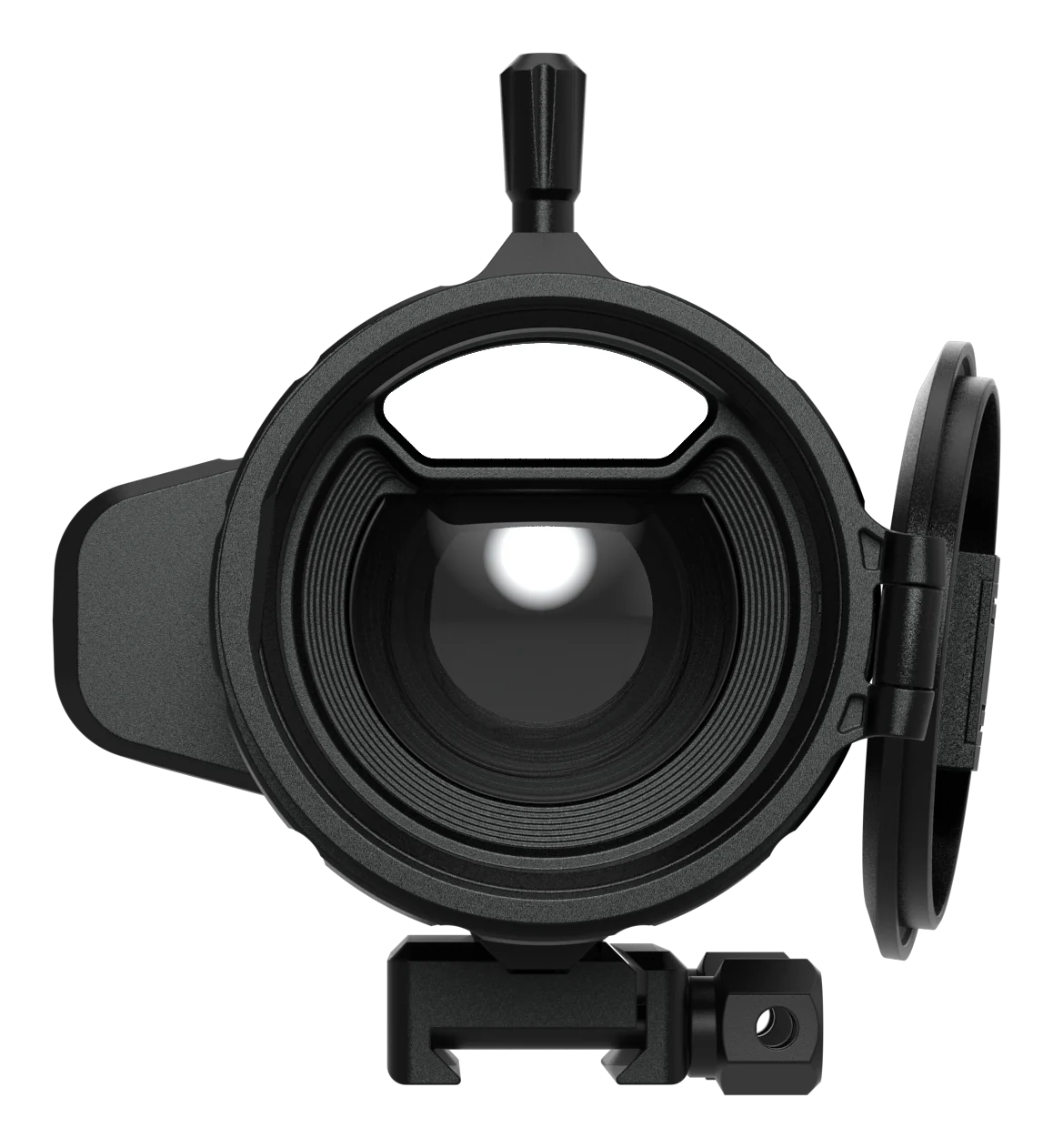

Laser Rangefinder
Objective Lens
Lens Cap
Focus Lever
Built-In Laser Rangefinder
The built-in laser rangefinder measures how far away a target is, from 5 to 1,000 yards. It can show the distance and angle on screen. If you enter your rifle, ammunition and environmental data and enable trajectory calculation, it can also show an estimated aiming point to help account for bullet drop.

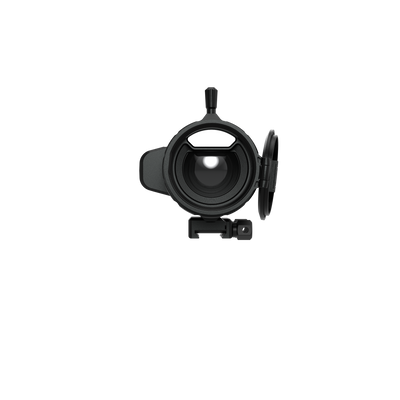

Thermal Objective Lens
The 40 mm front lens focuses infrared energy given off by objects onto the thermal sensor. The 640 model starts at 2x magnification, giving you a wider view when scanning for heat sources. The image updates 60 times per second.
Flip-Up Lens Cap
The hinged cap protects the front lens from dust and scratches when the scope isn't in use. Flip it open when you're ready to look through the scope. It stays attached, so there's no loose cover to keep track of.
Removable Focus Lever
Move the lever to sharpen the thermal image when viewing objects at different distances. The raised lever is easy to reach while wearing gloves, and you can remove it if you prefer.
In the Box
Included
- 0.3m USB-C to USB-A Cable
- Rubber Eyecup
- Flip Cap Back (for Eye Lens)
- Flip Cap Front (for Objective Lens)
- 2 x 18650 Batteries
- USB-C Charger for 18650 Batteries
Downloads
PDF, opens in a new tab

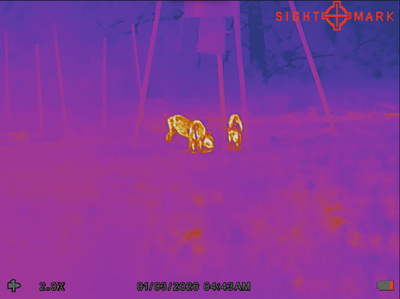

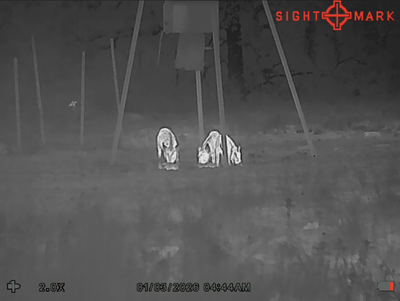

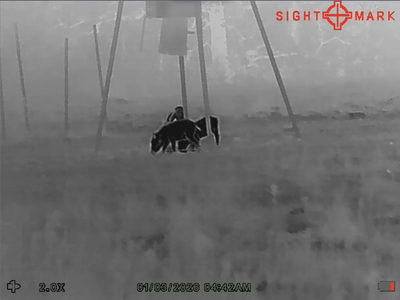

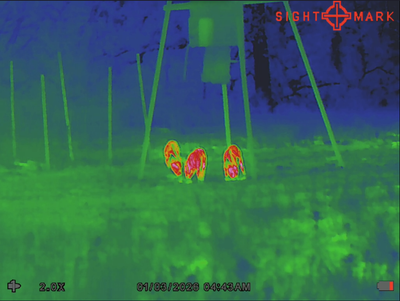

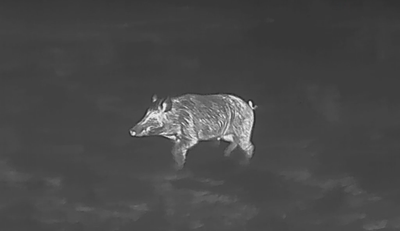

Real footage recorded on the Wraith 2.
Through the eyepiece Wraith 2 LRF 640
See What It Sees.
Real footage recorded on the Wraith 2. Flip through all five palettes and pick the one that fits your ground.
- Magnification
- 2–16x
- Detection range
- 2,730yd
Reticles Wraith 2 LRF 640
14 Reticles. 9 Colors.
Pick a style and a color that stands out against your background, from a hot summer field to a snow-covered pasture.
- 4 FFPFirst focal plane. The reticle grows as you zoom, keeping its aiming-mark measurements consistent.
- 10 SFPSecond focal plane. Stays the same size on screen as you zoom.
- MIL + MOAMIL and MOA are two systems for measuring aiming corrections. Choose the one you use. Each of the five weapon profiles saves its own reticle and zero.
SFP Reticles 10 · second focal plane
FFP Reticles 4 · first focal plane
All Product Features
Specifications
Wraith 2 LRF 640
- 640x512
- Vanadium Oxide
- 1024x768
- OLED
- 2x Optical
- 1–8x
- 40
- 2 / 50
- 12
- 8–14
- 60
- <20
- 2,730 yd (for 4.9 ft height target)
2,500 m (for 1.5 m height target) - 1x 18650
- 4.5 (Preview Mode)
- Yes
- Class 1
- 1.8
- 905
- 5 – 1,000 / 4.5 – 914
- ±1 yd @ 5–200 yd (±0.914 m @ 4.5–182 m)
±0.5% @ 200–1,000 yd (±0.5% @ 182–914 m) - Aluminum Alloy
- IPX6
- -4° – 122° F / -20° – 50° C
- 6.9 / 174
- 3.4 / 87
- 3.5 / 88
- 30.8 / 874
