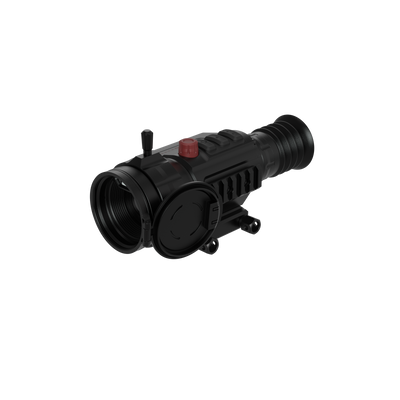

Wraith 2 LRF 384

Write a review
$1,999.97
  • OLED display
  • 1024x768 OLED Display
  • 14 Reticle Options
  • Onboard Wi-Fi, Video Recording & Photo Capture
  • IPX6 Water Resistance
Feature details

Complete your setup

Picked to pair with the Wraith 2 LRF 384

Setup savings apply automatically.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM17006
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Wraith 2 LRF

See everything the Wraith 2 can do

Explore more

Overview

The Sightmark Wraith 2 384 LRF is one of two optics in the new Wraith 2 line, both equipped with an integrated laser rangefinder — a first for the Wraith series. Powered by a 384x288 Vanadium Oxide sensor with 12µm pixel pitch and a 60fps frame rate, it delivers a sharp, fluid thermal image on a 1024x768 OLED display. The built-in Class 1 LRF ranges targets from 5 to 1,000 yards with ±0.5% yard precision at 200 to 1000 yards, putting real-time distance data on-screen without a separate device. With a base 3x optical magnification, 1–8x digital zoom, a 2,350-yard detection range, and 14 reticle options spanning first and second focal plane, it is built for serious hunters and tactical shooters who demand precision at distance in total darkness.

Wraith 2 LRF 384
Wraith 2 LRF 384

Wraith 2 LRF 384

Features

  1. 011024x768 OLED Display
  2. 0214 Reticle Options
  3. 03Onboard Wi-Fi, Video Recording & Photo Capture
  4. 04IPX6 Water Resistance

All product features

  • OLED display
  • 1024x768 OLED Display
  • 14 Reticle Options
  • Onboard Wi-Fi, Video Recording & Photo Capture
  • IPX6 Water Resistance

Included

In the box

  • 0.3m USB-C to USB-A Cable
  • Rubber Eyecup
  • Flip Cap Back (for Eye Lens)
  • Flip Cap Front (for Objective Lens)
  • 18650 Batteries (2)
  • USB-C Charger for 18650 Batteries

Specifications

Wraith 2 LRF 384, SKU SM17006

Sensor Resolution
384x288
Sensor Technology
Vanadium Oxide
Display Resolution
1024x768
Display Type
OLED
Magnification
3x Optical
Digital Zoom
1–8x
Objective Lens Diameter (mm)
35
Eye Relief (in/mm)
2 / 50
Pixel Pitch (µm)
12
Spectral Range (µm)
8–14
Frame Rate (fps)
60
NETD (mK)
20
Detection Range
2,350 yd (for 4.9 ft height target) 2,150 m (for 1.5 m height target)
Battery Type
1x 18650
Battery Life (hours)
4.5 (Preview Mode)
Laser Range Finder (yes/no)
Yes
Laser Classification
Class 1
Max Output Power (mW)
1.8
Wavelength of Laser (nm)
905
Range (yd/m)
5 – 1,000 / 4.5 – 914
Ranging Precision
±1 yd @ 5–200 yd (±0.914 m @ 4.5–182 m) ±0.5% @ 200–1,000 yd (±0.5% @ 182–914 m)
Body Material
Aluminum Alloy
IP Standard (water rating)
IPX6
Operating Temperature (°F/°C)
-4° – 122° F / -20° – 50° C
Length (in/mm)
6.9 / 174
Width (in/mm)
3.4 / 87
Height (in/mm)
3.5 / 88
Weight with Objective & Eyepiece Caps (oz/g)
31.1 / 883

Downloads

Customer reviews

No reviews yet. Own the Wraith 2 LRF 384? Be the first to review it.
