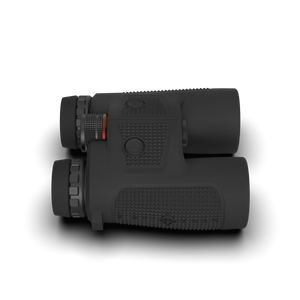

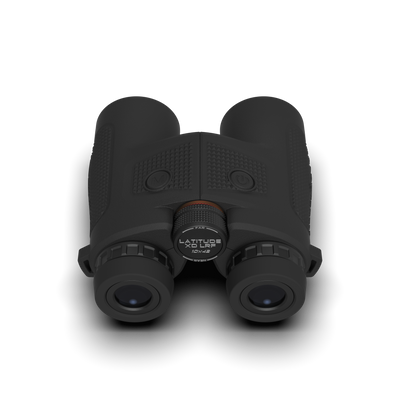

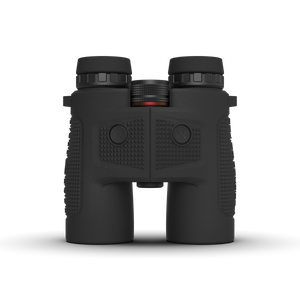

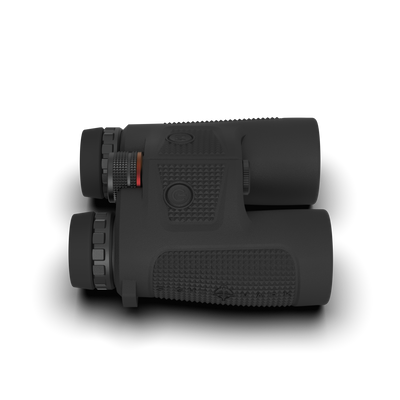

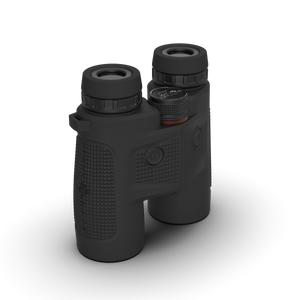

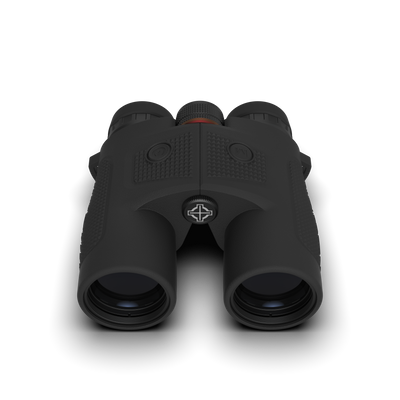

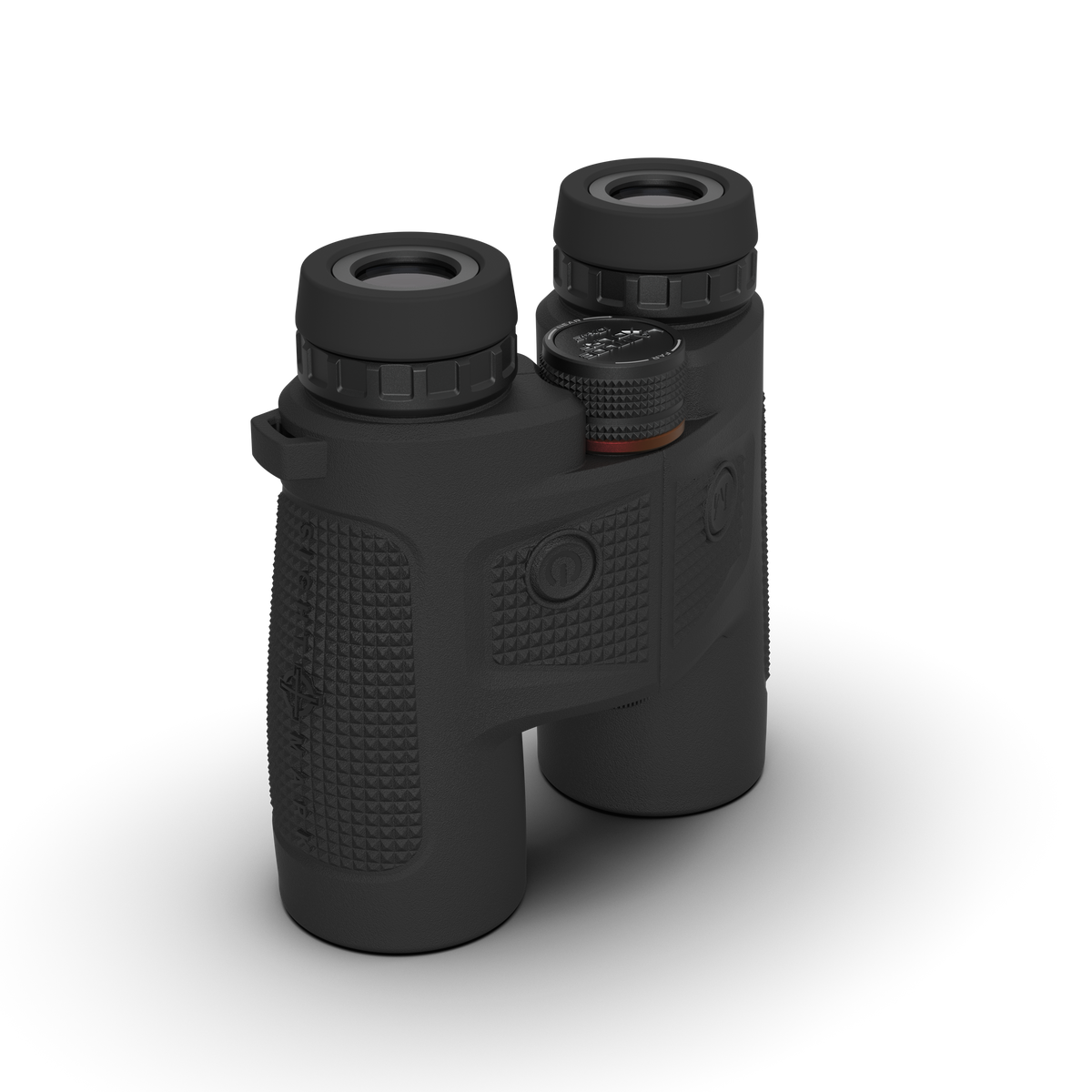

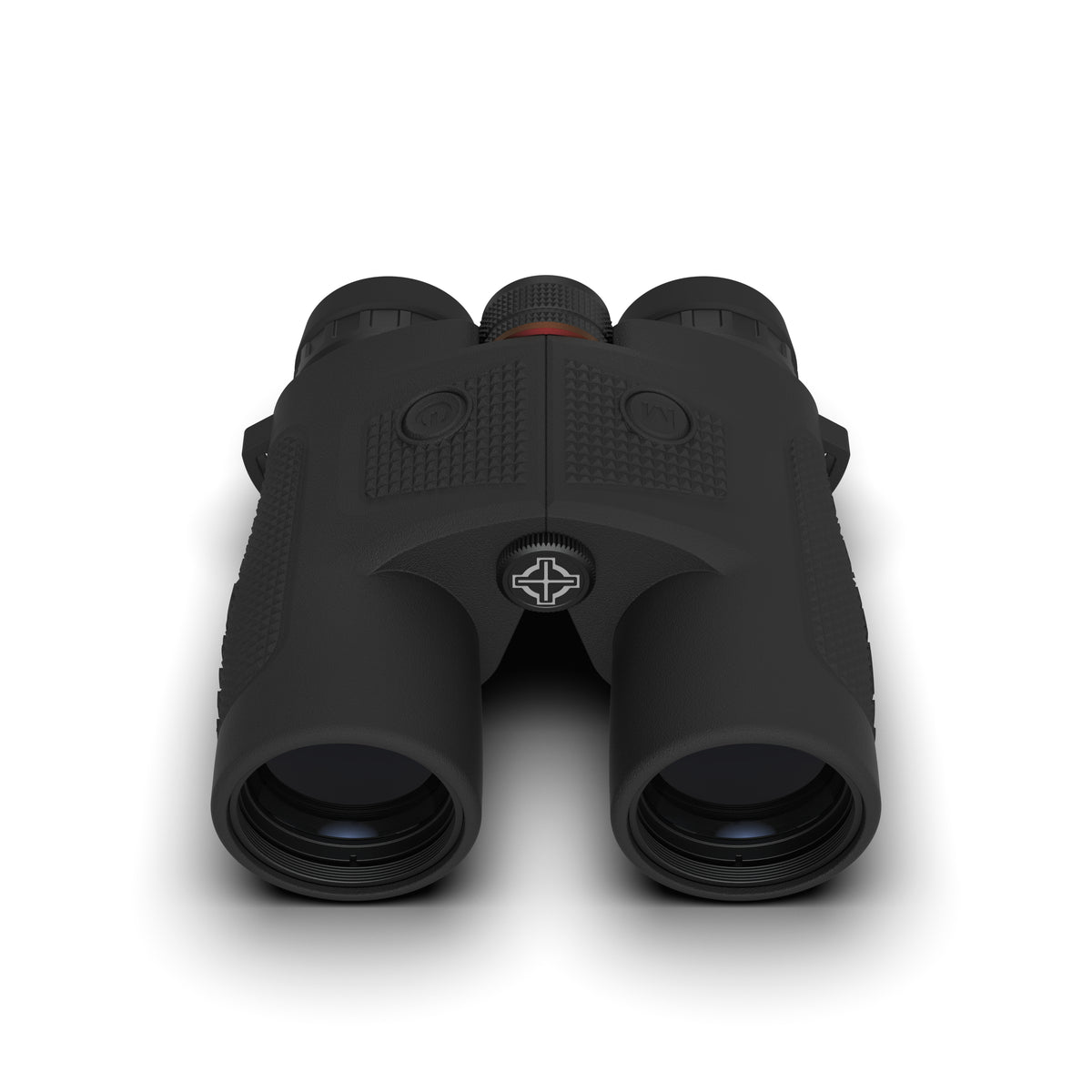

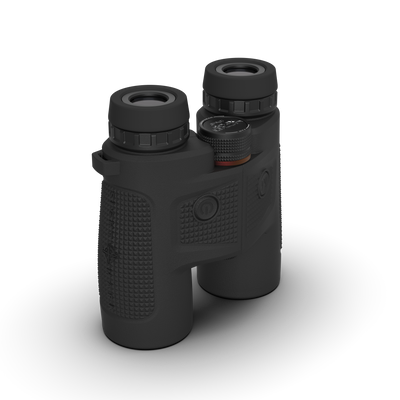

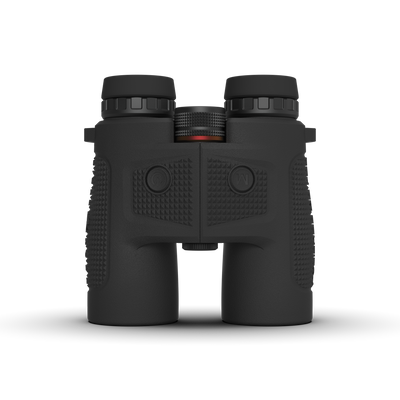

Latitude XD 10x42 LRF

Write a review
$799.97
  • Low-dispersion glass
  • OLED display
  • Prismatic glass
  • Multi-coated optics
  • Fogproof
  • Integrated Laser Rangefinder
  • ED Glass
  • Precision Accuracy - 1 Meter/Yard Accuracy
  • 3000 Meter Rangefinding
  • Measures True Horizontal Distance for Uphill/Downhill Shooting
See all 13 features

Complete your setup

Picked to pair with the Latitude XD 10x42 LRF

Setup savings apply automatically.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM22009
Availability
In stock

Overview

Sightmark's Latitude XD LRF 10x42 Binoculars deliver both visual clarity and accurate rangefinding every time they're brought into the field. The fully integrated laser rangefinder measures distances out to 3,280 yards on reflective targets and 2,187 yards on non-reflective targets, helping you shoot with confidence.

With these binoculars, you get 10x magnification and extra-low dispersion (ED) glass, cutting through haze and distance to deliver sharp, vibrant images at dawn, dusk, or midday. Advanced BaK4 roof prisms and fully multi-coated (FMC) lenses keep light transmission above 84%, giving you clarity and detail that stand out in low light.

The magnesium alloy chassis is built for the field with a waterproof (IPX7) body and nitrogen-purged tubes, tough enough for years of abuse. The OLED display gives a red digital readout with 10 brightness levels, set in the field of view so you never lose your target or your data. The interface is straightforward, allowing users to both measure ranges and change modes with the press of a button. Choose from Horizontal Component Distance (HCD), Line of Sight (LOS) with real-time angle, First, Best, and Last target modes. You get the right measurement every time, whether you’re working through brush or glassing across a canyon.

The CR2 battery keeps you running up to 42,000 actuations on low brightness, 17,000 at max, with auto power-off to conserve every bit of energy. Out of the box, you get a neoprene neck strap, carrying case, lens cloth, tripod adapter, flip caps, and rubber eyepiece covers.

If you want immediate, reliable distance readings in one optic, this is the practical choice.

Latitude XD 10x42 LRF
Latitude XD 10x42 LRF

Latitude XD 10x42 LRF

Features

  1. 01Integrated Laser Rangefinder
  2. 02ED Glass
  3. 03Precision Accuracy - 1 Meter/Yard Accuracy
  4. 043000 Meter Rangefinding
  5. 05Measures True Horizontal Distance for Uphill/Downhill Shooting
  6. 06Ranges in Meters or Yards

All product features

  • Low-dispersion glass
  • OLED display
  • Prismatic glass
  • Multi-coated optics
  • Fogproof
  • Integrated Laser Rangefinder
  • ED Glass
  • Precision Accuracy - 1 Meter/Yard Accuracy
  • 3000 Meter Rangefinding
  • Measures True Horizontal Distance for Uphill/Downhill Shooting
  • Ranges in Meters or Yards
  • Bright Red OLED Display
  • Simple Two Button Operation
  • BaK-4 Roof Prisms
  • Fully Multi-Coated Optics
  • Waterproof, Fogproof, Dustproof
  • Durable Rubber Armored Housing
  • Twist-Up Eyecups

Included

In the box

  • Padded Neoprene Neck Strap
  • Binocular Harness
  • Carrying Case
  • Objective Flip Caps
  • Rubber Eyepiece Covers
  • Tripod Adapter Mount
  • Lens Cloth
  • CR2 Battery

Specifications

Latitude XD 10x42 LRF, SKU SM22009

Magnification (x)
10
Objective Lens Diameter (mm)
42
Type of Prism
BaK4 - Roof
Prism Coating (yes/no)
Yes
Prism Coatings (type)
Phase Correction, Dielectric
Lens Type
ED
Lens Coating (CL/FC/BMC/FBMC)
FMC, Anti-Fog, Anti-Scratch
Focus System (Cent. / Ind. / Fix)
Center
Exit Pupil Diameter (mm)
4.2
Eye Relief (in/mm)
0.63 / 16
Field of View (angle)
6.0°
Field of View (ft @ 1000 yds)
315
Field of View (m @ 1000 m)
105
Minimum Focus Distance (ft / m)
16.4 / 5.0
Light Transmission (%)
> 84%
Relative Brightness
17.6
Twilight Index
20.5
Resolution
< 6.5"
Diopter System (location)
L / R eyepieces
Diopter Range
-5 to +5
Interpupillary Distance (in/mm)
2.2 - 2.9 / 56–73
Display Type
OLED
Display Color
Red
Brightness Settings
1–10
Distance Modes
HCD, LOS
Ranging Modes
First, Best, Last
Ranging Units
Yards, Meters
Housing Material
Magnesium Alloy
Waterproof (yes/no)
Yes
Gas Purge
Nitrogen
Eyecup System (type)
Twist-up
Laser Type
FDA Class 1 / IEC Class 3R
Accuracy (yd/m)
± 1
Max Range - Reflective (yd/m)
3280 / 3000
Max Range - Non-Reflective (yd/m)
2187 / 2000
Min Range (yd/m)
5 / 5
Response Time (seconds)
< 0.5
Auto Power Off (seconds)
10
Battery Type
CR2
Battery Life
Max brightness: ~17,000 actuations Mid brightness: ~38,000 actuations Min brightness: ~42,000 actuations
IP Rating
IPX7
Operating Temperature Range (°F / °C)
14 to 131 / -10 to 55
Storage Temperature Range (°F / °C)
-4 to 149 / -20 to 65
Length (in / mm)
5.67 / 144
Width (in / mm)
5.43 / 138
Height (in / mm)
2.95 / 75
Weight (oz / g)
33.4 / 946
