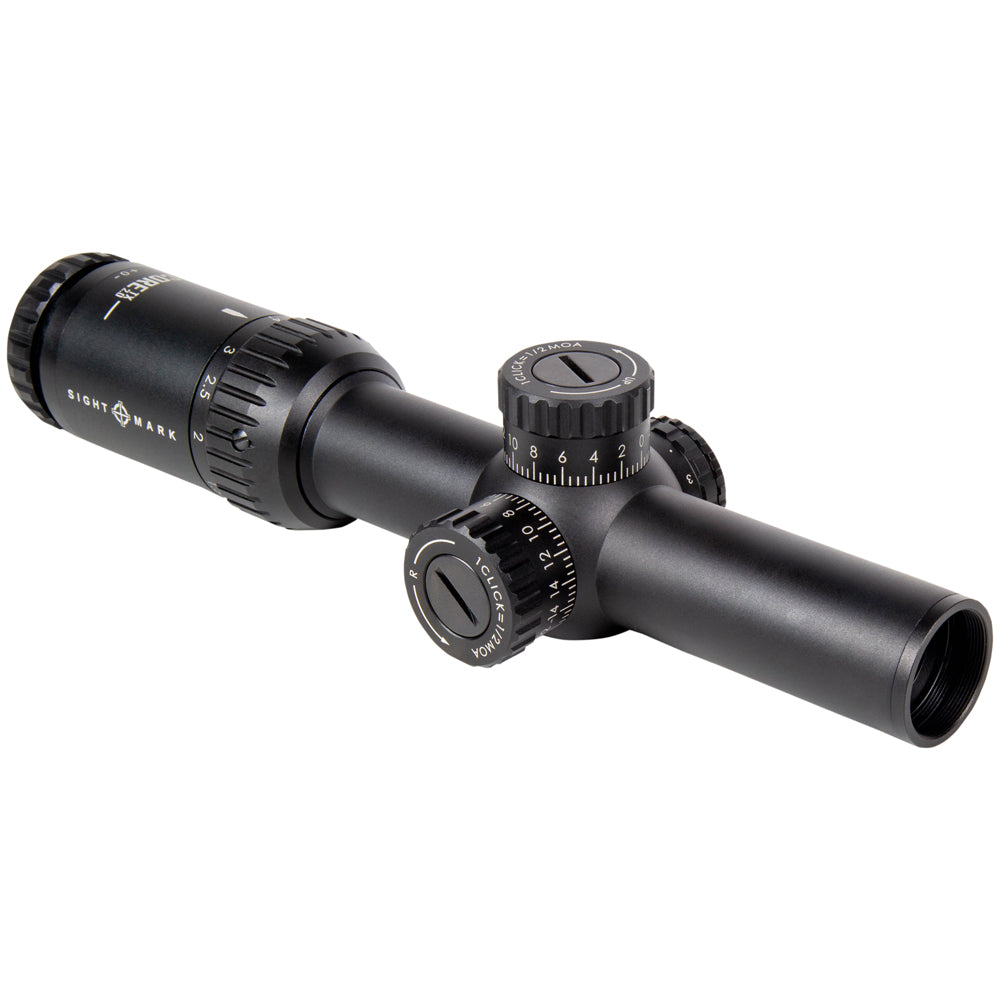

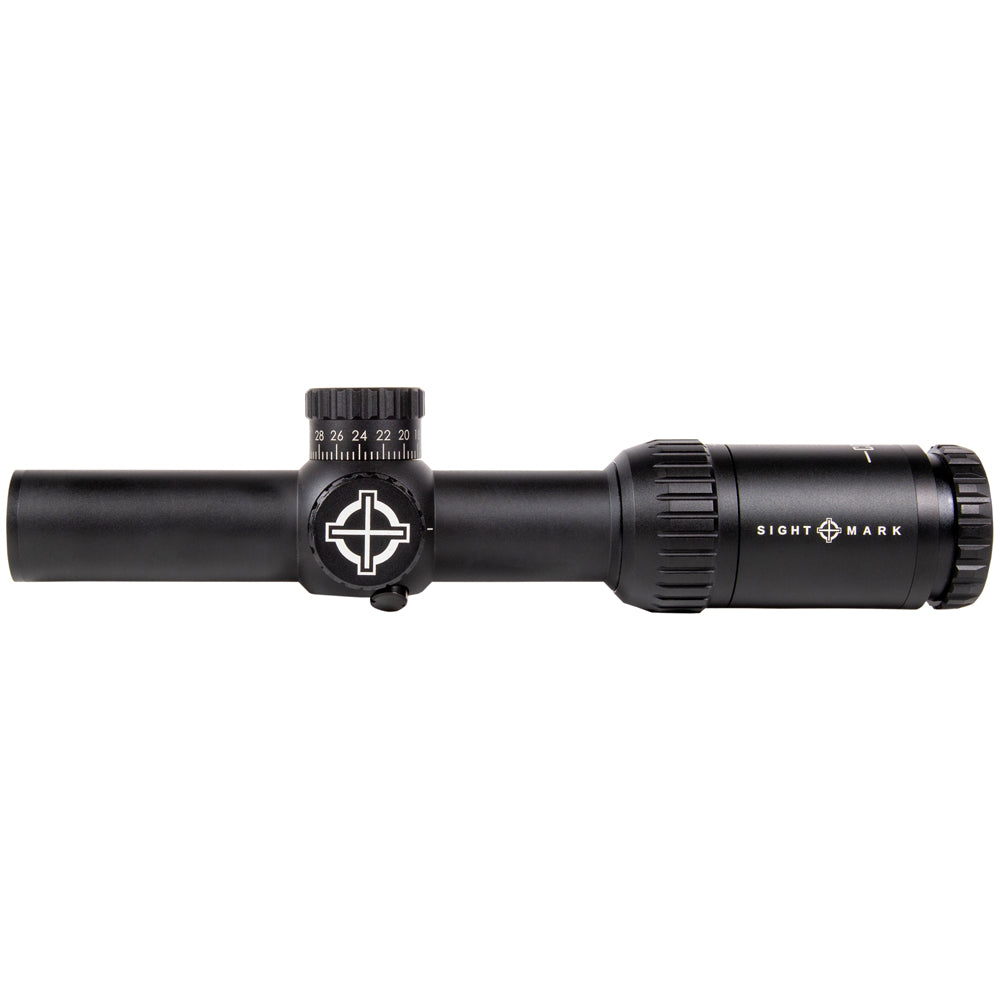

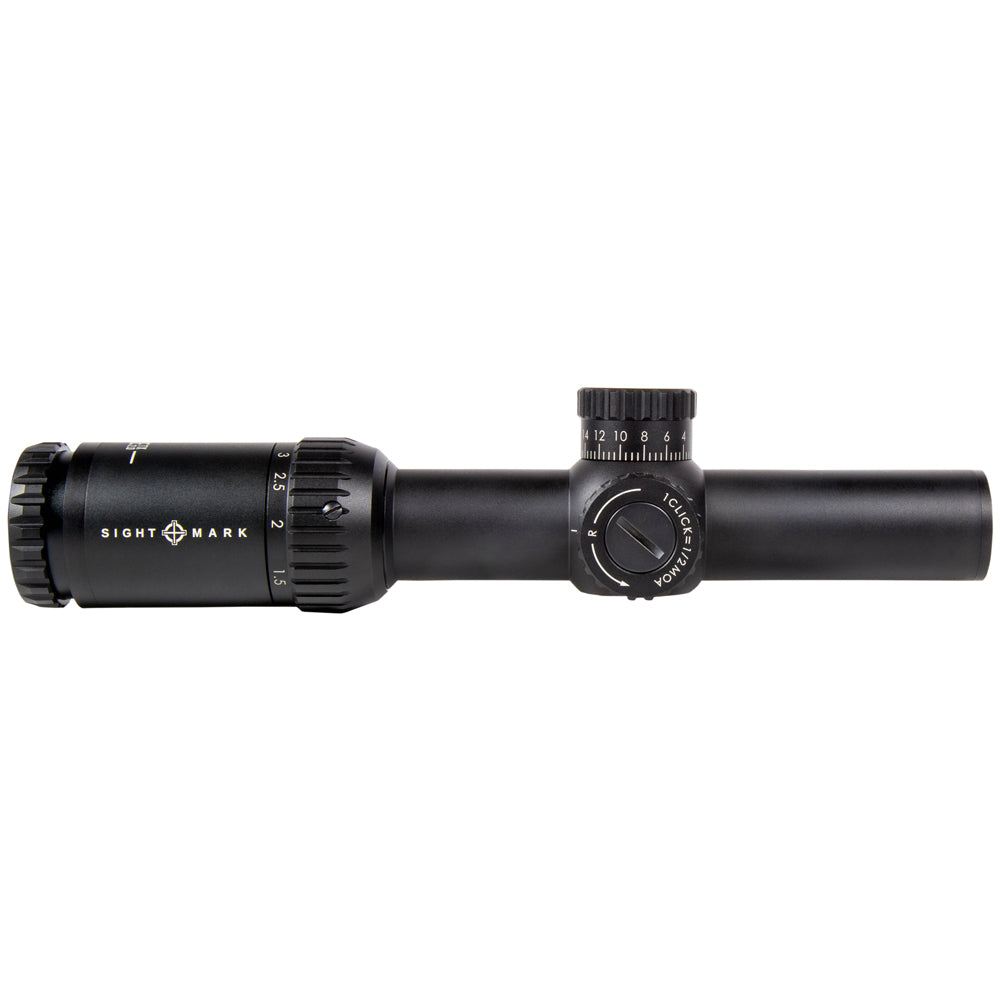

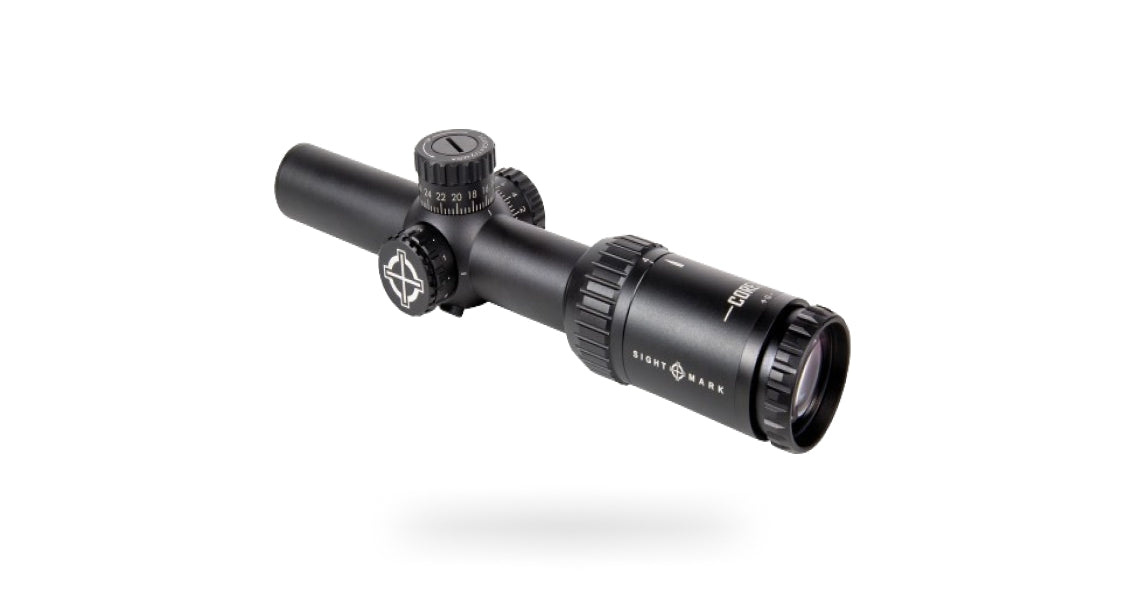

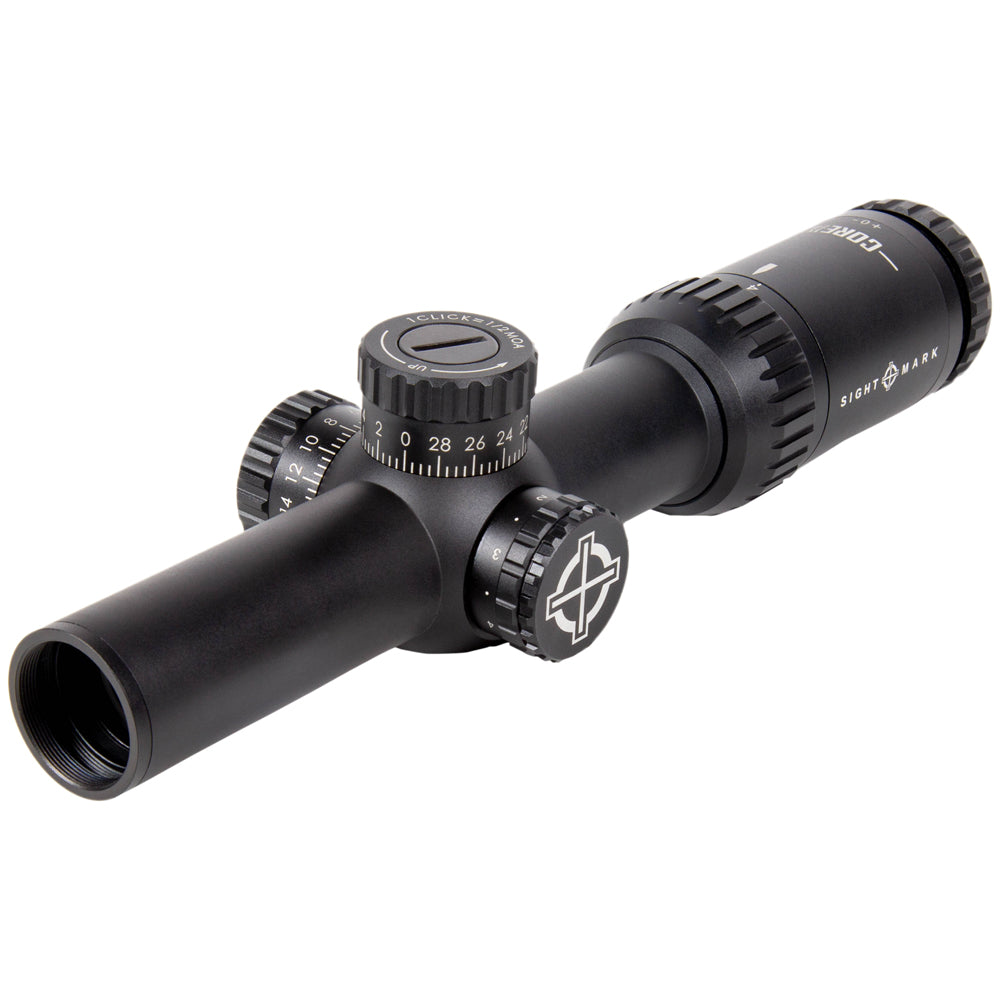

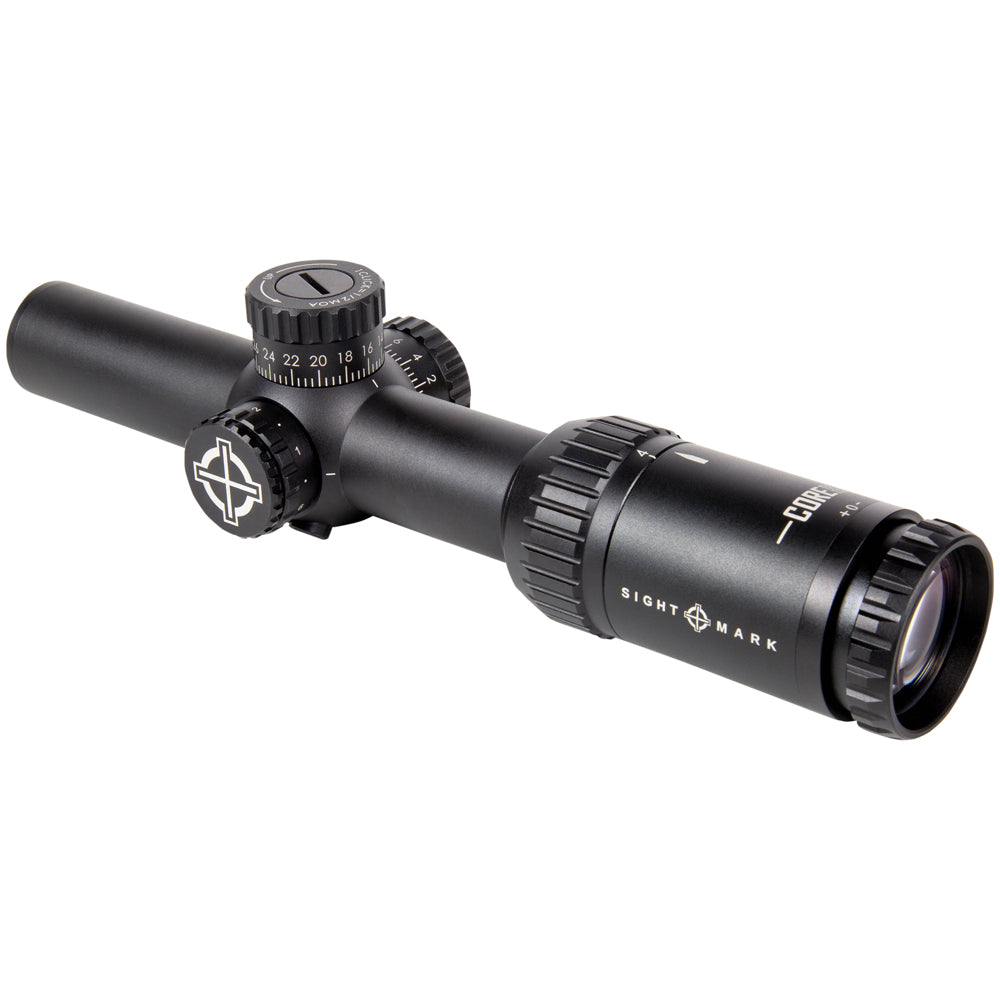

Core 2.0 TX 1-4x24 SFP Rifle Scope

Write a review
$239.97
  • Aircraft-grade aluminum
  • Shockproof
  • Multi-coated optics
  • Ballistic Drop Reticle
  • 1-4x Magnification
  • Objective Lens Diameter 24mm
  • Parallax Settings 100 yards
  • Windage Adjustment Range 140 MOA
See all 14 features

Complete your setup

Picked to pair with the Core 2.0 TX 1-4x24 SFP Rifle Scope

Setup savings apply automatically.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM13120AR556
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

The new Core TX 2.0 Series of riflescopes from Sightmark is an improvement on the previous Core, offering upgraded glass, finer click adjustments, and improved low light performance. Designed with versatility in mind, the Core TX 2.0 1-4x24mm AR556 SFP MOA comes with a Ballistic Drop Reticle calibrated especially for 55gr 5.56x45mm rounds, ensuring pinpoint precision at its highest magnification.

As a low-powered variable optic, the Core TX 2.0 offers versatility to its users. This 1-4x24mm optic delivers rapid target acquisition for close or medium range targets. Its robust housing made of aircraft grade aluminum is designed for high intensity tactical shooting. Shoot with confidence knowing the Core TX 2.0’s shockproof body can withstand the rigors of high-speed engagements. With an IPX7 waterproof rating, tread through rivers and lakes with the knowledge that your Core TX 2.0 will still be on target. A nitrogen-filled tube eliminates fog, while its high quality glass provides a crystal clear image.

Core 2.0 TX 1-4x24 SFP Rifle Scope

  1. BDC Reticle

    The BDC (Bullet Drop Compensator) reticle is a second focal plane optic with a circle-dot design designed for IPSC targets. Specifically calibrated for the .223 Rem. 55gr cartridge, this reticle incorporates BDC holdovers for efficient bullet drop compensation. Notably, at the highest magnification, the BDC reticle offers a 1.34 MOA aiming point, ensuring precise and rapid target acquisition for shooters seeking enhanced accuracy in diverse shooting scenarios.

  2. Red illuminated Reticle

    With the ability to illuminate the reticle in red, shooters gain a clear and easily distinguishable aiming point, particularly in low-light situations. This feature proves invaluable for hunters during dawn or dusk and tactical shooters operating in dimly lit environments. The red illumination ensures quick and precise shot placement, contributing to improved accuracy and overall performance in dynamic scenarios.

  3. Objective Lens Diameter 24mm

Core 2.0 TX 1-4x24 SFP Rifle Scope

Core 2.0 TX 1-4x24 SFP Rifle Scope

Features

  1. 01Ballistic Drop Reticle
  2. 021-4x Magnification
  3. 03Objective Lens Diameter 24mm
  4. 04Parallax Settings 100 yards
  5. 05Windage Adjustment Range 140 MOA
  6. 06Elevation Adjustment Range 140 MOA

All product features

  • Aircraft-grade aluminum
  • Shockproof
  • Multi-coated optics
  • Ballistic Drop Reticle
  • 1-4x Magnification
  • Objective Lens Diameter 24mm
  • Parallax Settings 100 yards
  • Windage Adjustment Range 140 MOA
  • Elevation Adjustment Range 140 MOA
  • Single-Piece Tube
  • Aircraft Grade Aluminum
  • Hard Anodized Finish
  • Exposed, Locking Turrets
  • Shockproof, Fogproof, Waterproof
  • Fully Multi-Coated Optics
  • Fast-Focus Eyepiece
  • Illuminated Red Reticle
What comes in the box

Included

In the box

  • Scope Rings
  • Lens Flip-Caps
  • Lens Cloth
  • CR2032 Battery

Specifications

Core 2.0 TX 1-4x24 SFP Rifle Scope, SKU SM13120AR556

Reticle Type
AR 556 (Ballistic Drop Reticle)
Reticle
Etched
Reticle Color
Red
Illuminated (yes/no)
Yes
Reticle Brightness Settings
0-6
Finish/Color
Matte Black
Magnification (x)
1-4x
Objective Lens Diameter (mm)
24
Eyepiece Diameter (mm)
44
Exit Pupil Diameter (mm)
8.5 - 6
Eye Relief (in/mm)
3.7 / 94.0
Field of View (m @100m)
32.25 - 7.99
Field of View (ft @100yd)
105.80 - 26.20
Diopter Adjustment (+/-)
+2 / -2
Tube Diameter (in/mm)
1.18 / 30
Parallax Settings (yds)
100
Windage Adjustment Range (MOA)
140
Elevation Adjustment Range (MOA)
140
Windage & Elevation Lock (yes/no)
Yes

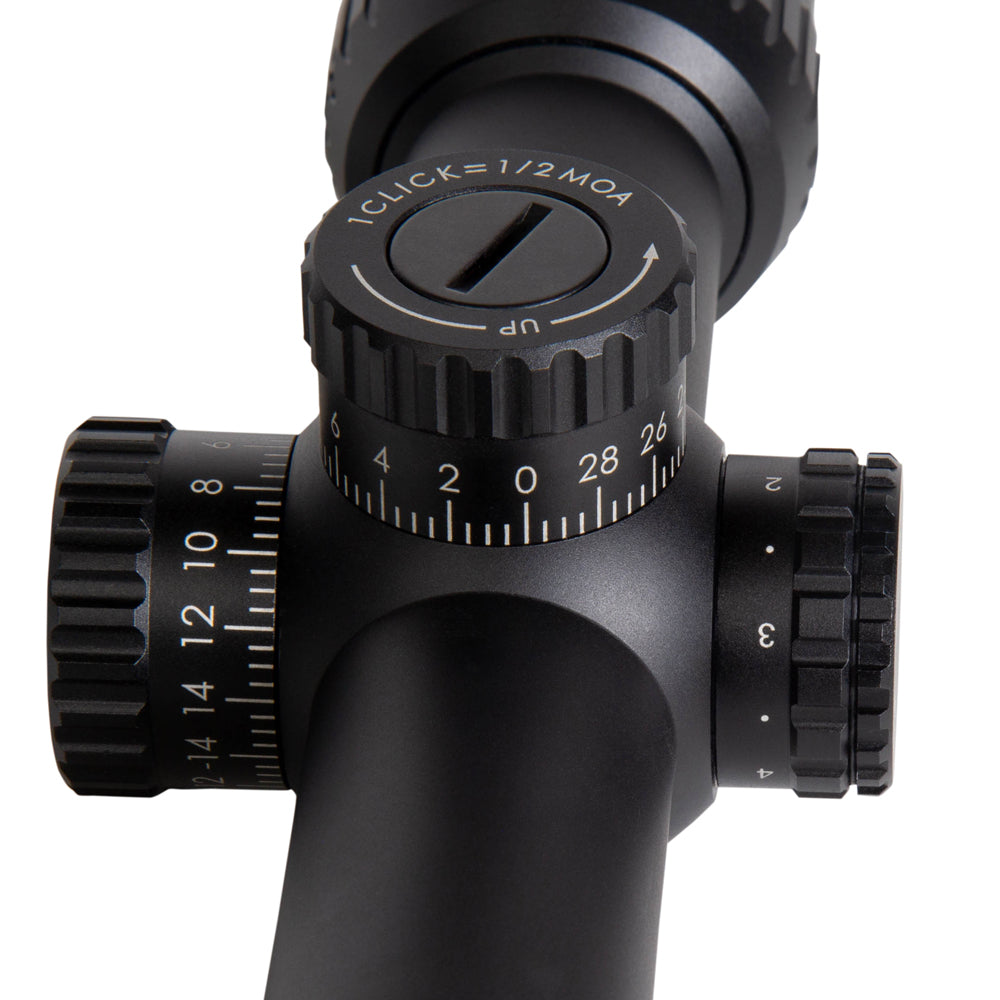

Adjustment Value (one click =)
1/2 MOA
Maximum Recoil (G's)
1000
Sunshade (yes/no)
No
Niliogen Filled (yes/no)
Yes
Shockproof (yes/no)
Yes
Fog Proof (yes/no)
Yes
Focal Plane
2nd
IP Standard (water rating)
IPX7 - waterproof and dust proof
Body Material
Aluminum 6061-T6
Lens Material/Type
Glass
Lens Coatings
Fully Multi-Coated
Battery Type
CR2032
Battery Life (hours)
80 - 1000
Operating Temperature (°F/°C)
-4° to 149° / -20° to 65°
Length (in/mm)
10.0 / 254.0
Width (in/mm)
2.75 / 70.0
Height (in/mm)
2.15 / 54.5
Weight w/flip caps (oz)
18.8
