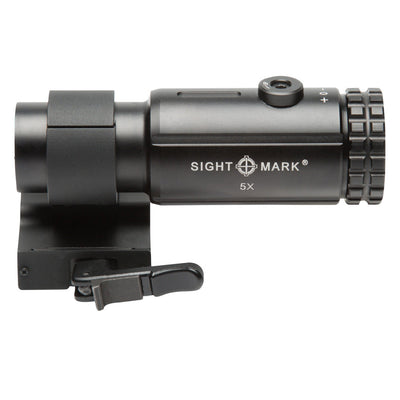

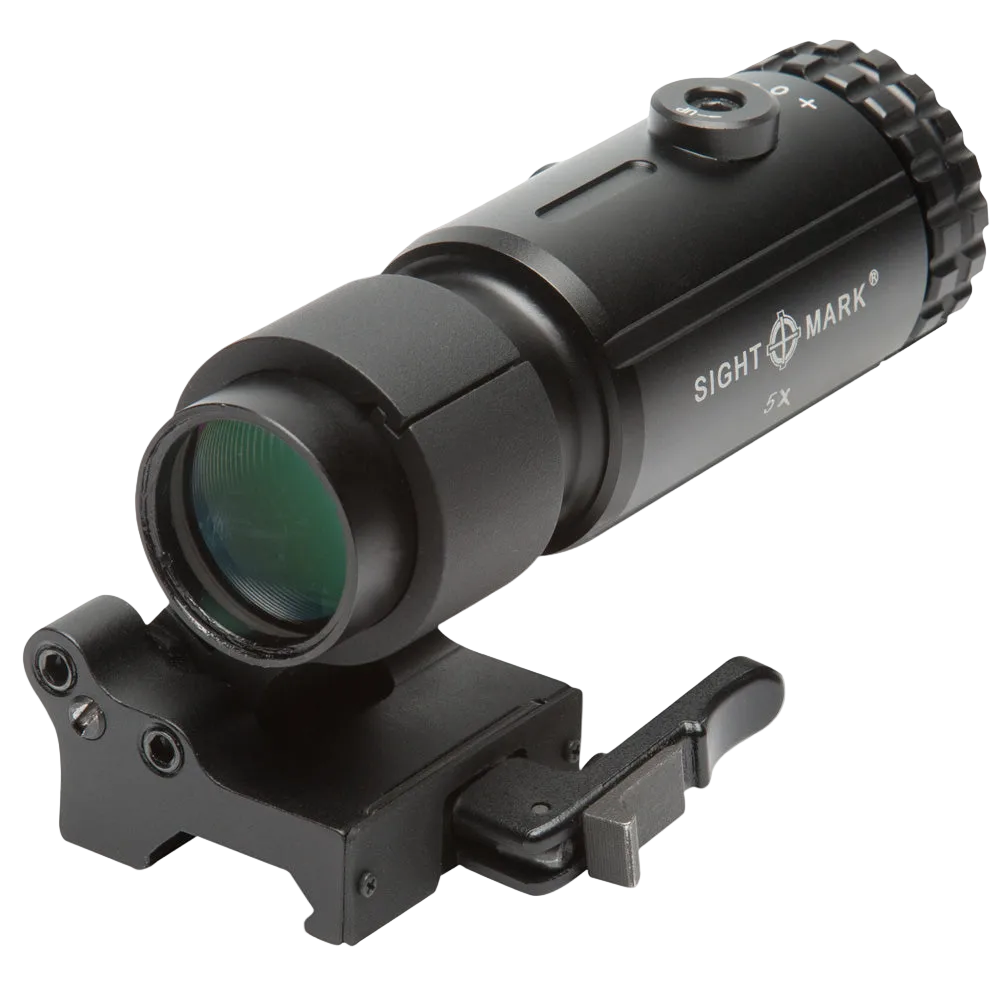

T-5 Magnifier 5X with LQD Flip to Side Mount

$155.97
  • Multi-coated optics
  • Locking, quick detach mount for quick and easy removal
  • External windage/elevation adjustment for reticle alignment
  • Absolute co-witness
  • Fully multi-coated, scratch resistant
  • 5x magnification increases engagement to 200 yards
See all 6 features
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM19064
Availability
In stock

Overview

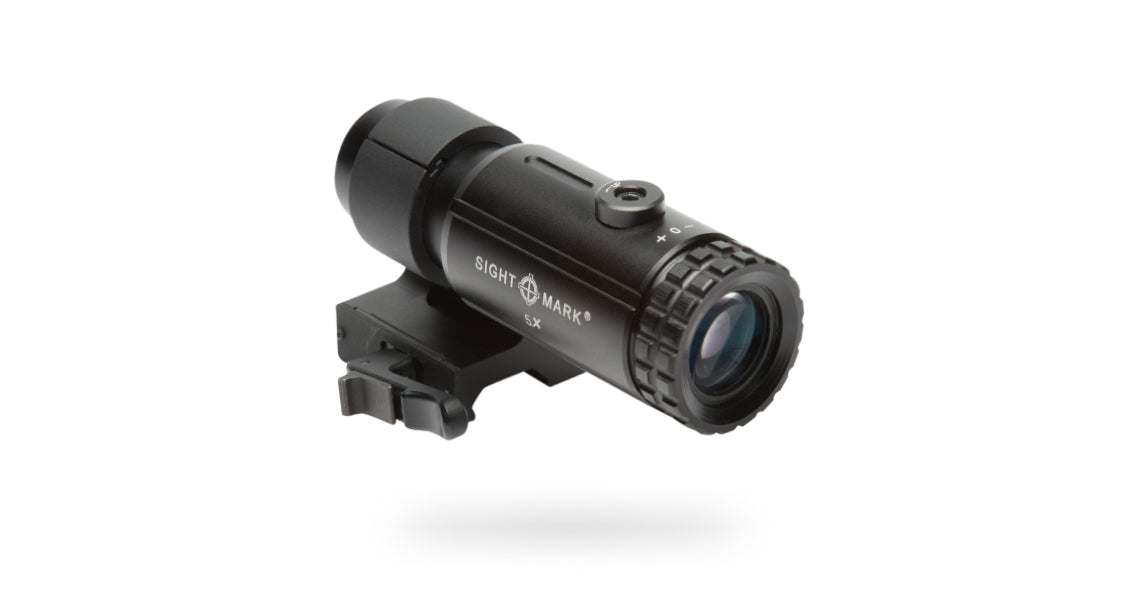

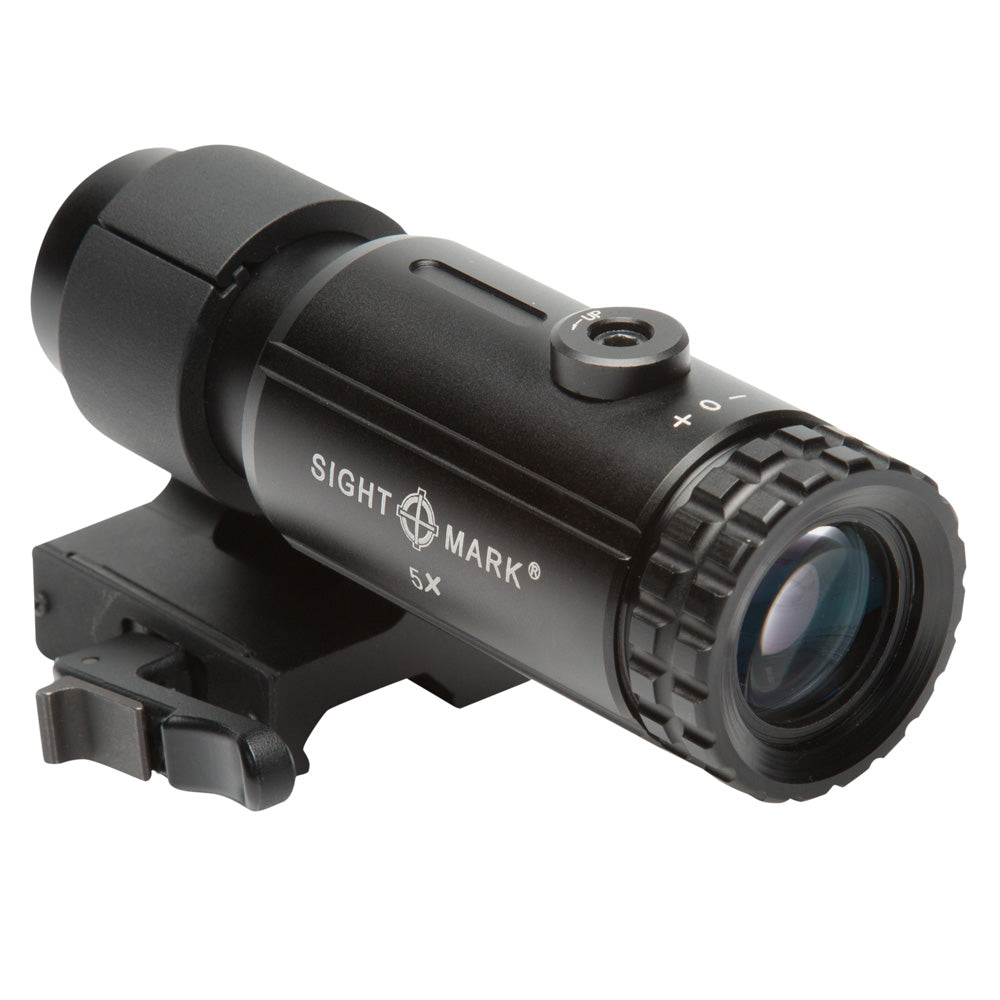

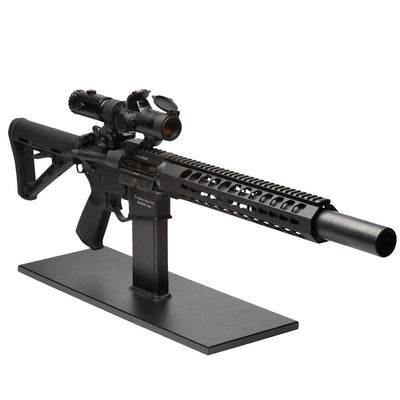

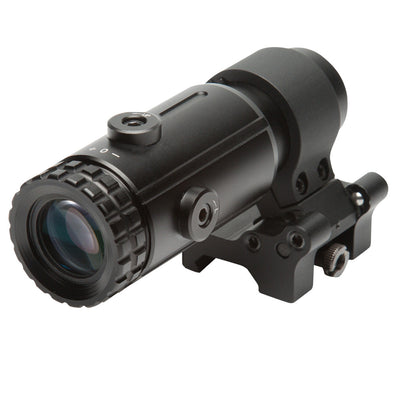

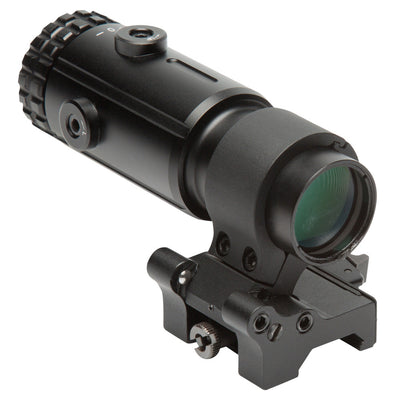

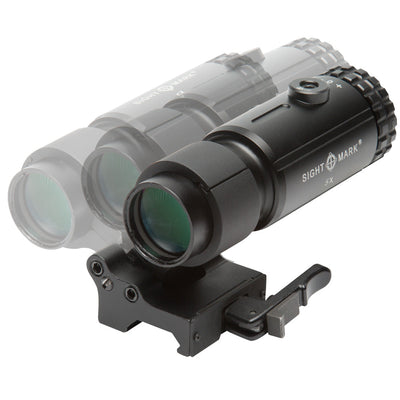

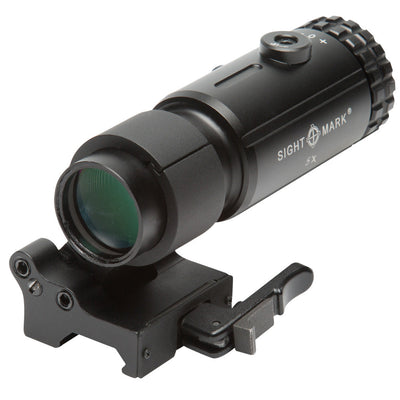

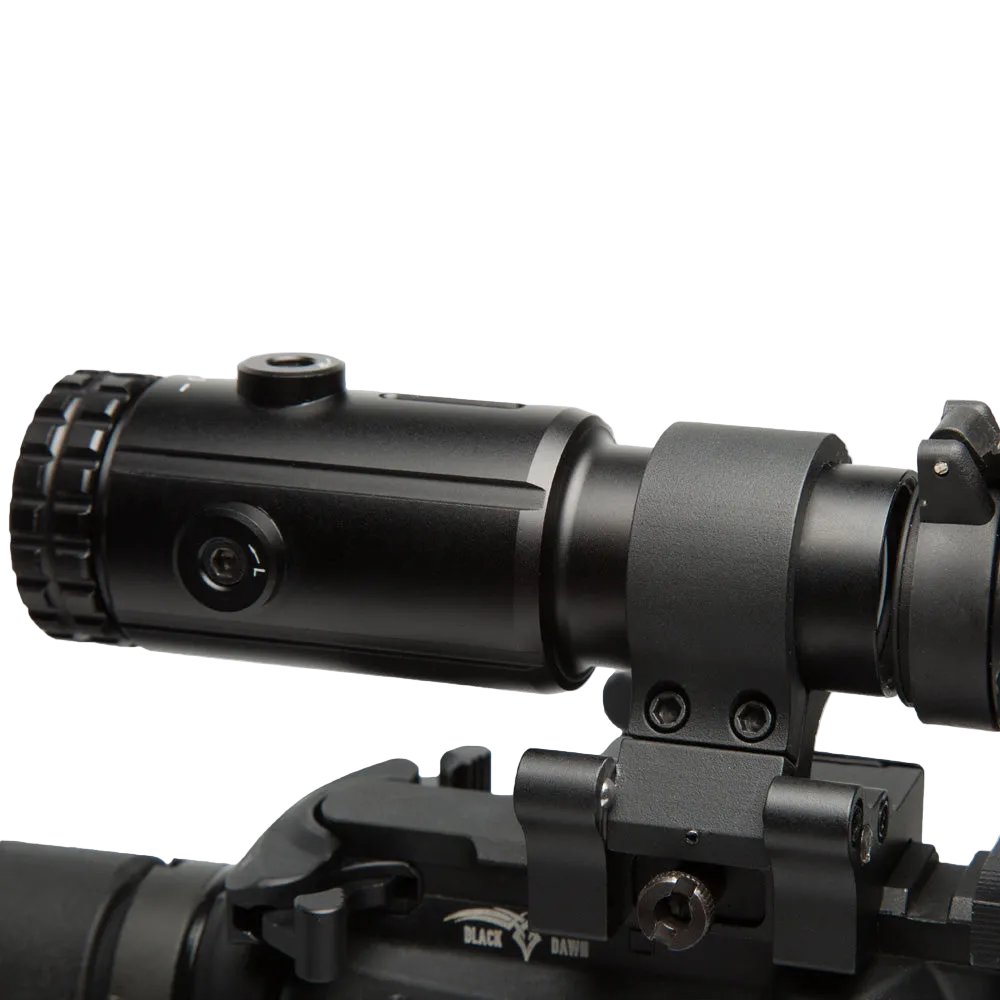

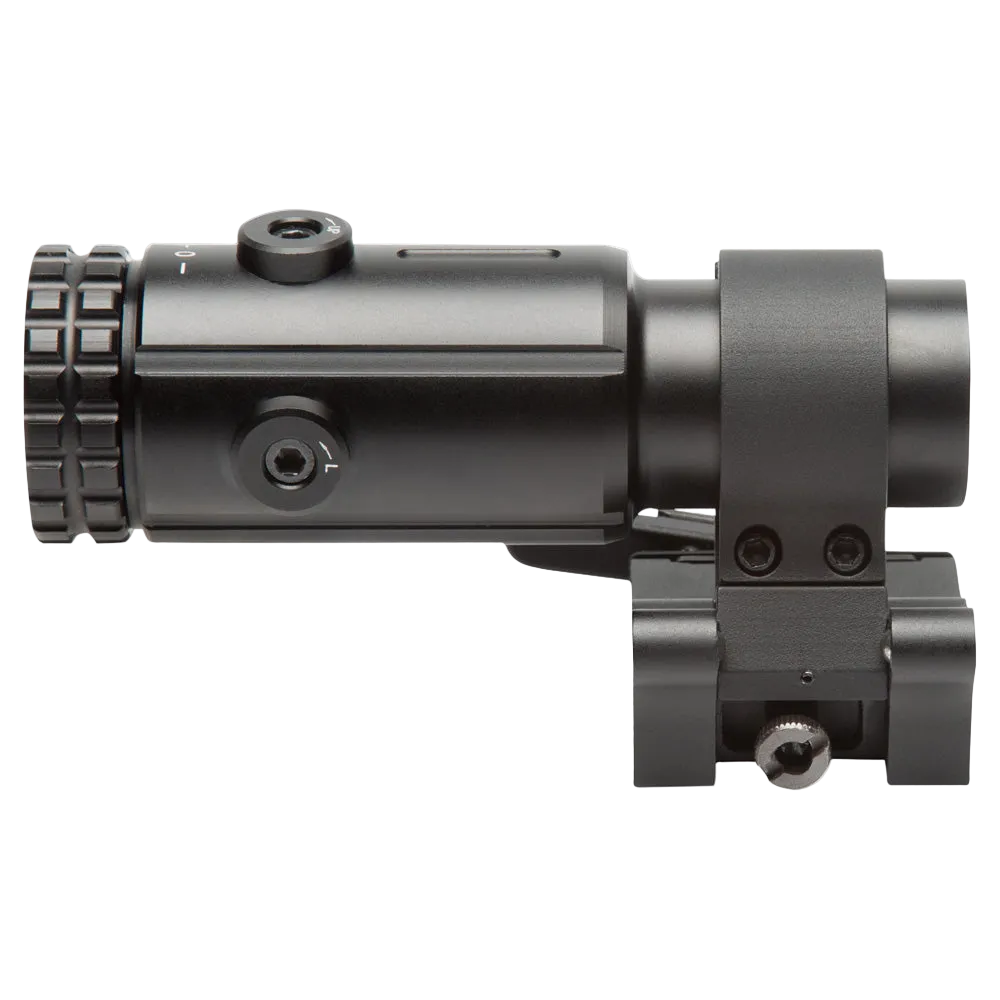

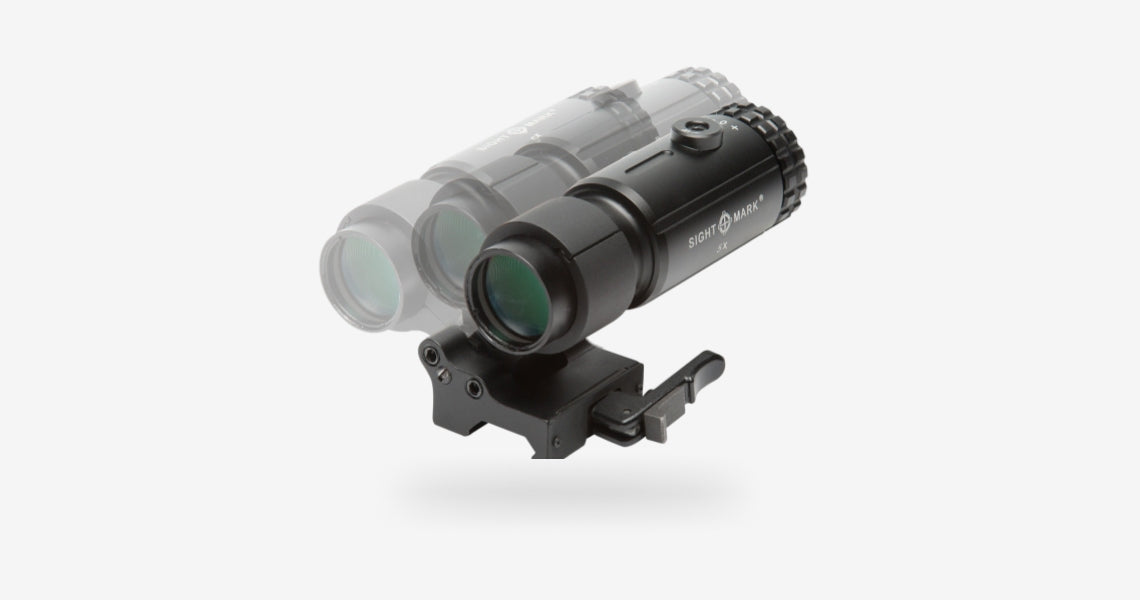

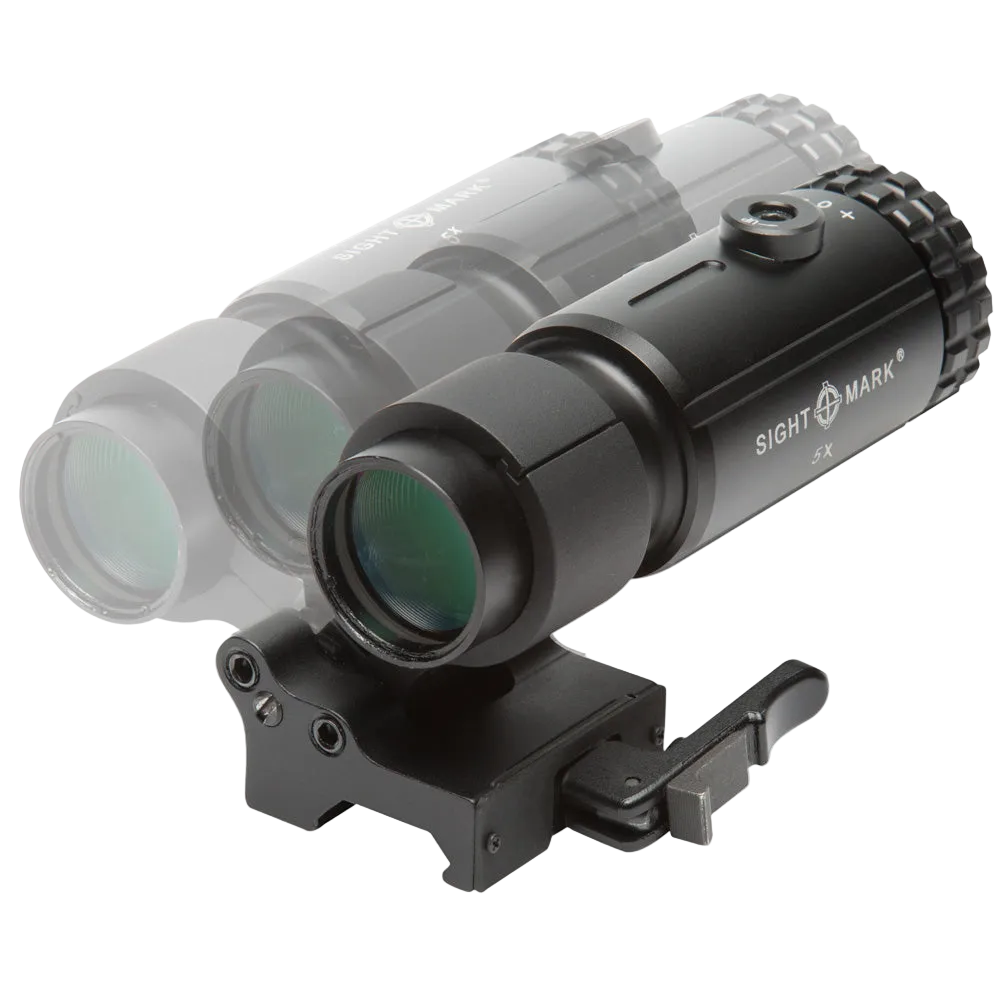

Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.

T-5 Magnifier 5X with LQD Flip to Side Mount

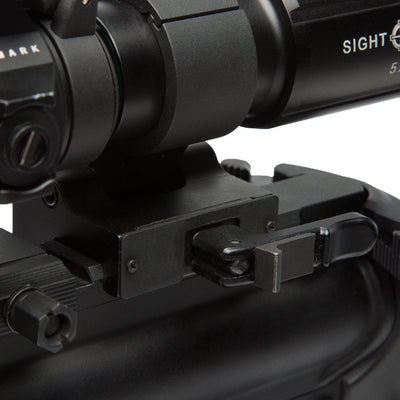

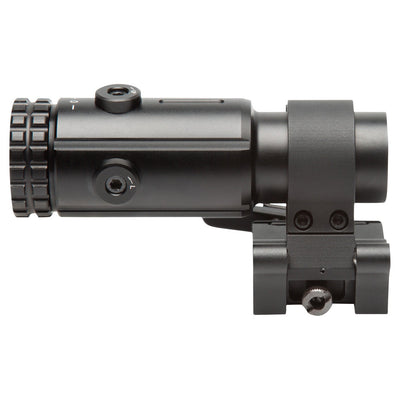

  1. Locking, quick detach mount for quick and easy removal

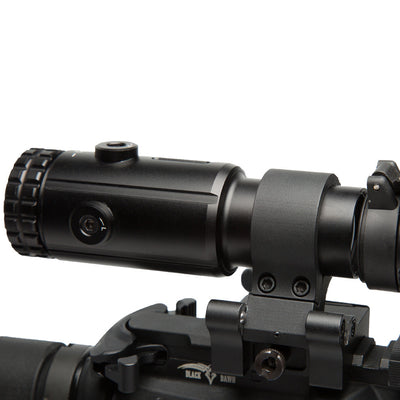

  2. External windage/elevation adjustment for reticle alignment

  3. Absolute co-witness

T-5 Magnifier 5X with LQD Flip to Side Mount

T-5 Magnifier 5X with LQD Flip to Side Mount

Features

  1. 01Locking, quick detach mount for quick and easy removal
  2. 02External windage/elevation adjustment for reticle alignment
  3. 03Absolute co-witness
  4. 04Fully multi-coated, scratch resistant
  5. 055x magnification increases engagement to 200 yards
  6. 06EOTech® and Aimpoint® compatible

All product features

  • Multi-coated optics
  • Locking, quick detach mount for quick and easy removal
  • External windage/elevation adjustment for reticle alignment
  • Absolute co-witness
  • Fully multi-coated, scratch resistant
  • 5x magnification increases engagement to 200 yards
  • EOTech® and Aimpoint® compatible

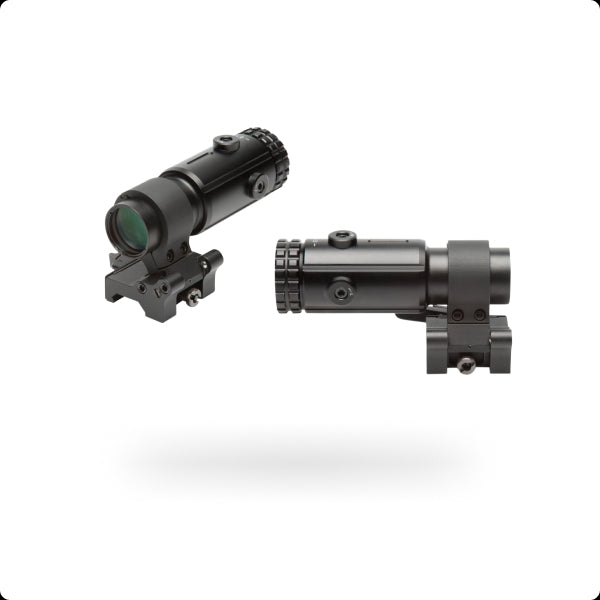

What comes in the box

Included

In the box

  • Flip to side LQD mount
  • Adjustment tools
  • Manual

Specifications

T-5 Magnifier 5X with LQD Flip to Side Mount, SKU SM19064

Magnification
5x
Objective Lens
23 mm
Diameter, Eyepiece
1.26/32 in/mm
Diameter, Exit Pupil
4.6 mm
Eye relief (in/mm)
2.25/57 in/mm
Field of view, m@100m
9.8
Field of view, ft@100yd
29.6
Diopter Adjustment
+3 to -3
Diameter, Tube
30 mm
Maximum Recoil
.308 Caliber
Shockproof
Yes
Fog Proof
No
IP Rating (waterproof)
IP55 - water resistant
Finish/Color
Matte black
Body Material
Aluminum
Lens Coating
Full Multi-coated
Mount Type
Picatinny
Operating temperature, F/C
-22 to 160 / -30 to 71 F/C
Length (in/mm)
4.72 / 120 in/mm
Width (in/mm)
2.6 / 66.2 in/mm
Height (in/mm)
1.67 / 42.5 in/mm

Customer reviews

5out of 5

Based on 1 review

  • 5 star1
  • 4 star0
  • 3 star0
  • 2 star0
  • 1 star0
  1. Easy to install

    Magnifies as it should but when used with red dot the red dot at 100 yards covers target completely most likely wound be good if used with something other than a red dot
