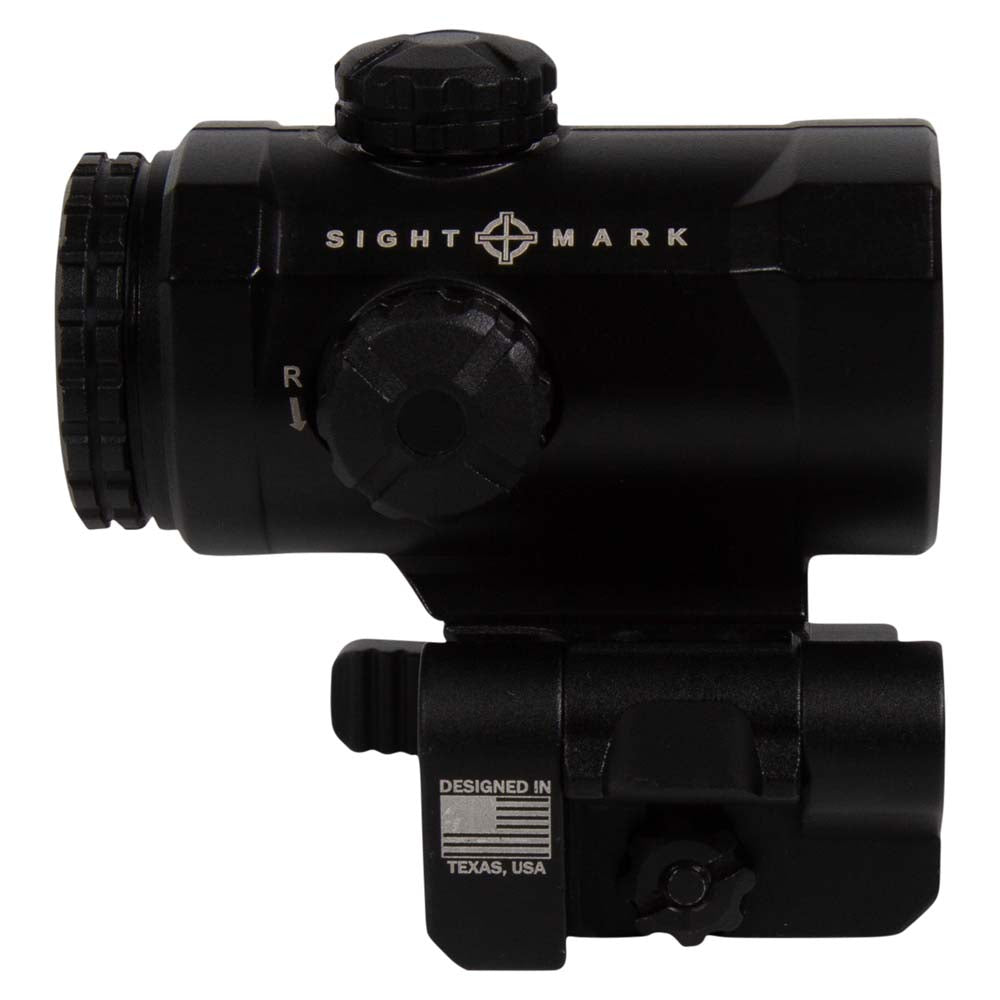

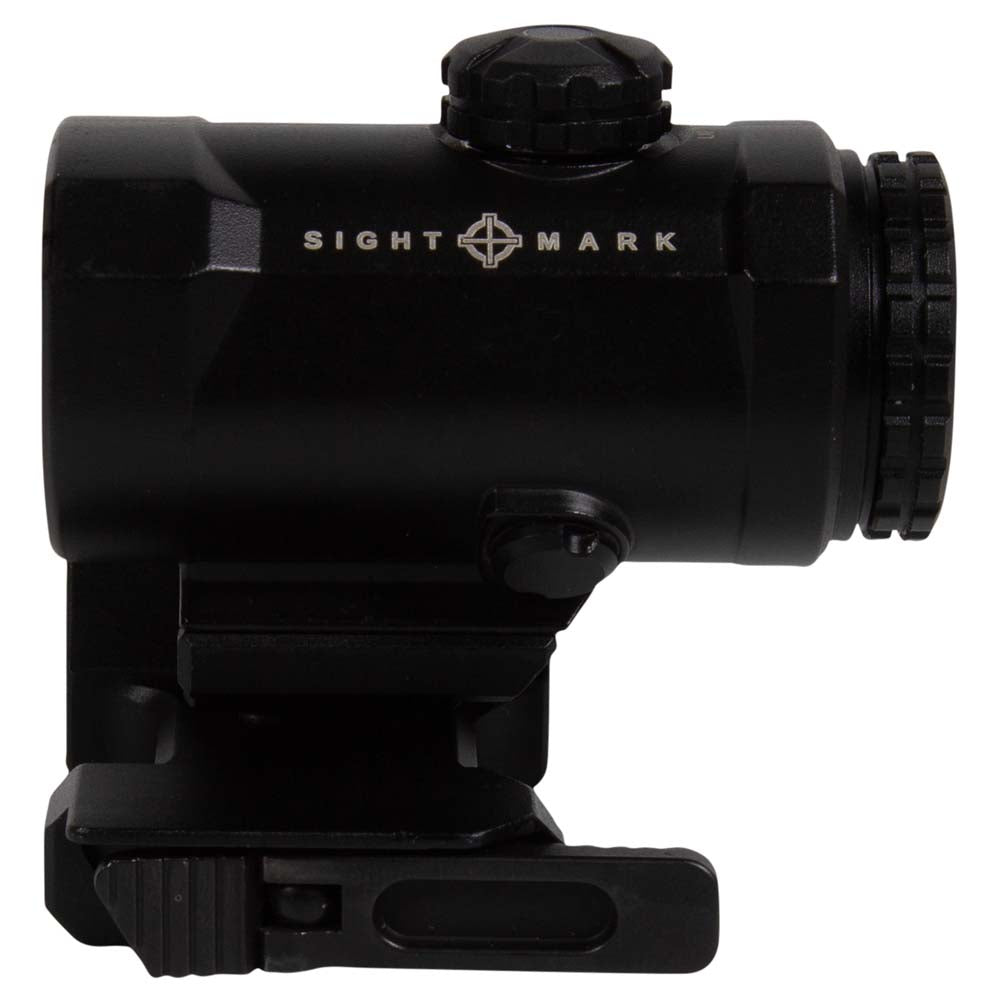

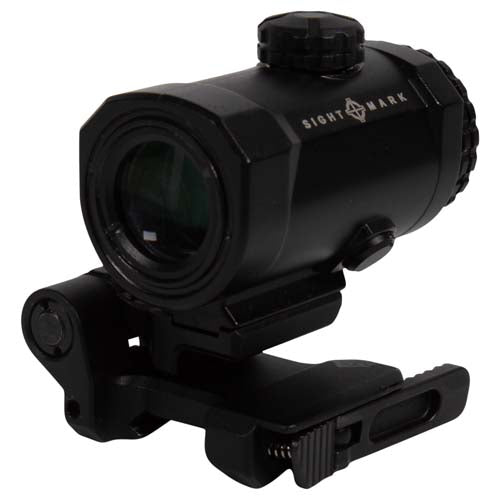

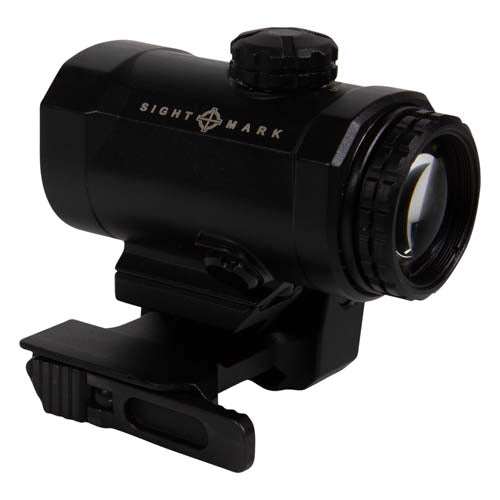

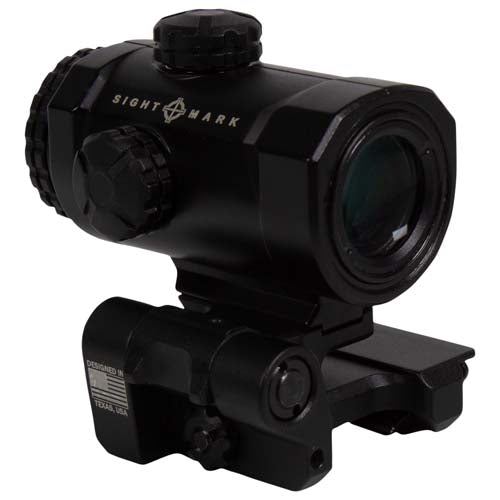

Lupa XTM-3

Write a review
$299.97
  • Multi-coated optics
  • Most compact magnifier on the market
  • Lightest weight magnifier on the market
  • Locking Quick Detach mounting platform for quick and easy mounting/removal
  • Waterproof and dustproof
  • Fully multi-coated optics
See all 9 features

Complete your setup

Picked to pair with the Lupa XTM-3

Setup savings apply automatically.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Secure checkout. Most orders ship the same business day.

Shipping calculated at checkout. Most orders ship same business day. Cancellation policy

SKU
SM19065
Availability
In stock
Product manual (PDF, opens in a new tab) Spec sheet (opens in a new tab)

Overview

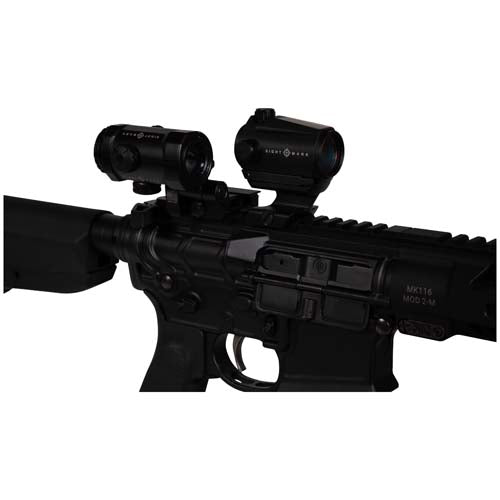

Si necesita pasar de disparos de corto alcance a disparos de precisión a media distancia sin añadir peso a su rifle, la lupa XTM-3 es la herramienta ideal. Sightmark ofrece la lupa más ligera y compacta del mercado actual. Con un peso de tan solo 227 g, esta lupa de 7,6 cm de largo cuenta con un objetivo de 18 mm y ofrece un aumento de 3x para una amplia variedad de miras de punto rojo montadas en rifles.

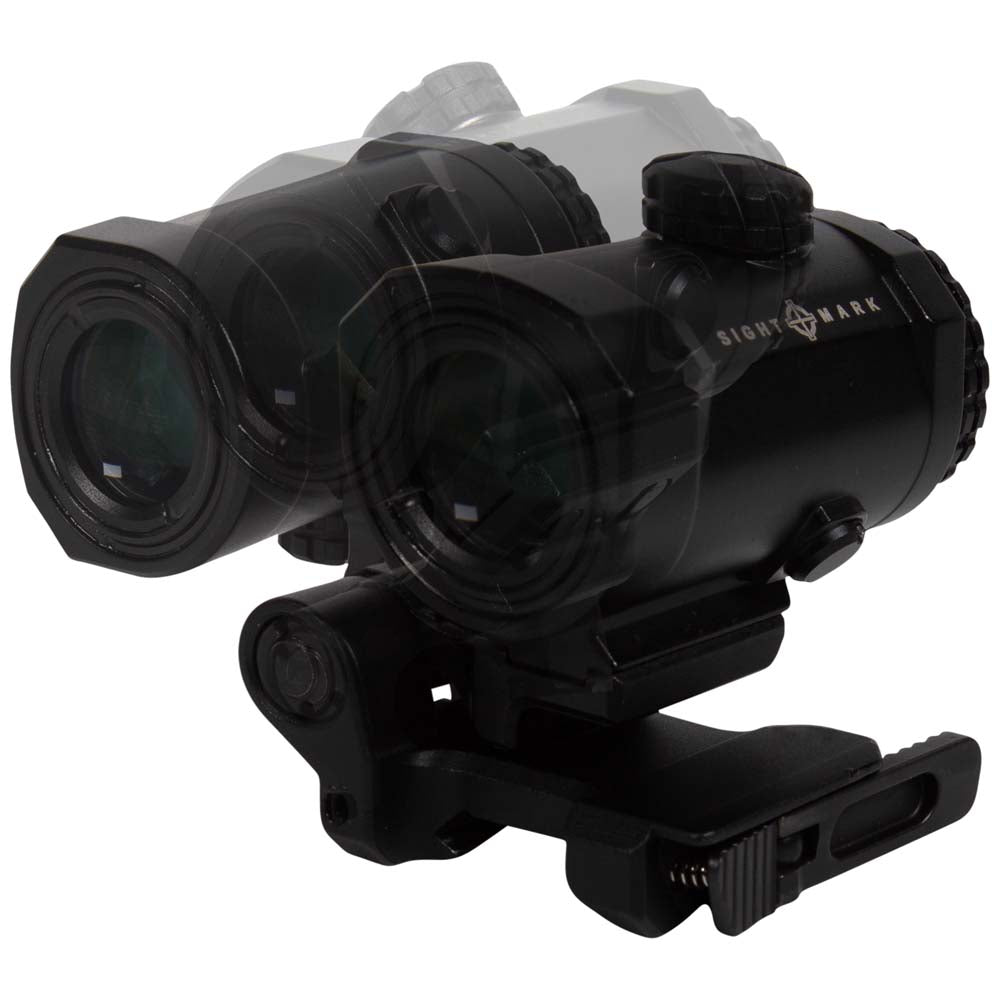

Equipada con un práctico mecanismo de giro lateral y un soporte de desmontaje rápido con bloqueo, la XTM-3 está diseñada pensando en la practicidad y la ergonomía. Fabricada con una carcasa de aluminio 6061 a prueba de golpes con clasificación de impermeabilidad IPX7 y una cámara rellena de nitrógeno para eliminar el vaho, la lupa XTM-3 es una lupa de calidad diseñada para durar.

Lupa XTM-3

  1. La lupa más compacta del mercado.

  2. La lupa más ligera del mercado.

  3. Plataforma de montaje de desmontaje rápido con bloqueo para un montaje y desmontaje rápidos y sencillos

Lupa XTM-3

Lupa XTM-3

Features

  1. 01Most compact magnifier on the market
  2. 02Lightest weight magnifier on the market
  3. 03Locking Quick Detach mounting platform for quick and easy mounting/removal
  4. 04Waterproof and dustproof
  5. 05Fully multi-coated optics
  6. 06Increases magnification of accompanying sights for greater engagement range

All product features

  • Multi-coated optics
  • Most compact magnifier on the market
  • Lightest weight magnifier on the market
  • Locking Quick Detach mounting platform for quick and easy mounting/removal
  • Waterproof and dustproof
  • Fully multi-coated optics
  • Increases magnification of accompanying sights for greater engagement range
  • Finger adjustable windage and elevation for reticle alignment
  • Compatible with most red dot and reflex sights
  • Improved target recognition, especially medium range targets
What comes in the box

Included

In the box

  • Manual
  • LDQ flip-to-side mount

Specifications

Lupa XTM-3, SKU SM19065

Magnification (x)
3
Resolution
10.0
Objective lens diameter (mm)
18
Eyepiece diameter (mm)
30
Exit pupil diameter (mm)
5.6
Eye relief (in/mm)
2.32 / 59.0
Field of view, degree
6.8
Field of view (m @100m)
11.88
Field of view (ft @100yd)
35.65
Diopter adjustment (+/-)
+2 to -2
Maximum caliber
.338
Shockproof (yes/no)
yes
Fog proof (yes/no)
yes
IP Standard (water rating)
IPX7 (1m for 1 hr)
Body material
6061 Aluminum
Lens material/type
Glass
Lens coatings
FMC
Mount type
Flip-to-Side
Operating temperature (°F/°C)
-4 to 140 / -20 to 60
Finish/color
Matte Black Anodize
Length (mm/in.)
69 / 2.72
Width (mm/in.)
55 / 2.17
Height (mm/in.)
68 / 2.68
Weight w/ mount (oz/g)
8.1 / 230
